Rear Lighting

8w-51-2:

Fuse 1 (FB)
Fuse 2 (FB)
Fuse Block
Headlamp Switch

8w-51-3:

Brake Lamp Switch
Fuse 7 (PDC)
G201
Power Distribution Center
Powertrain Control Module

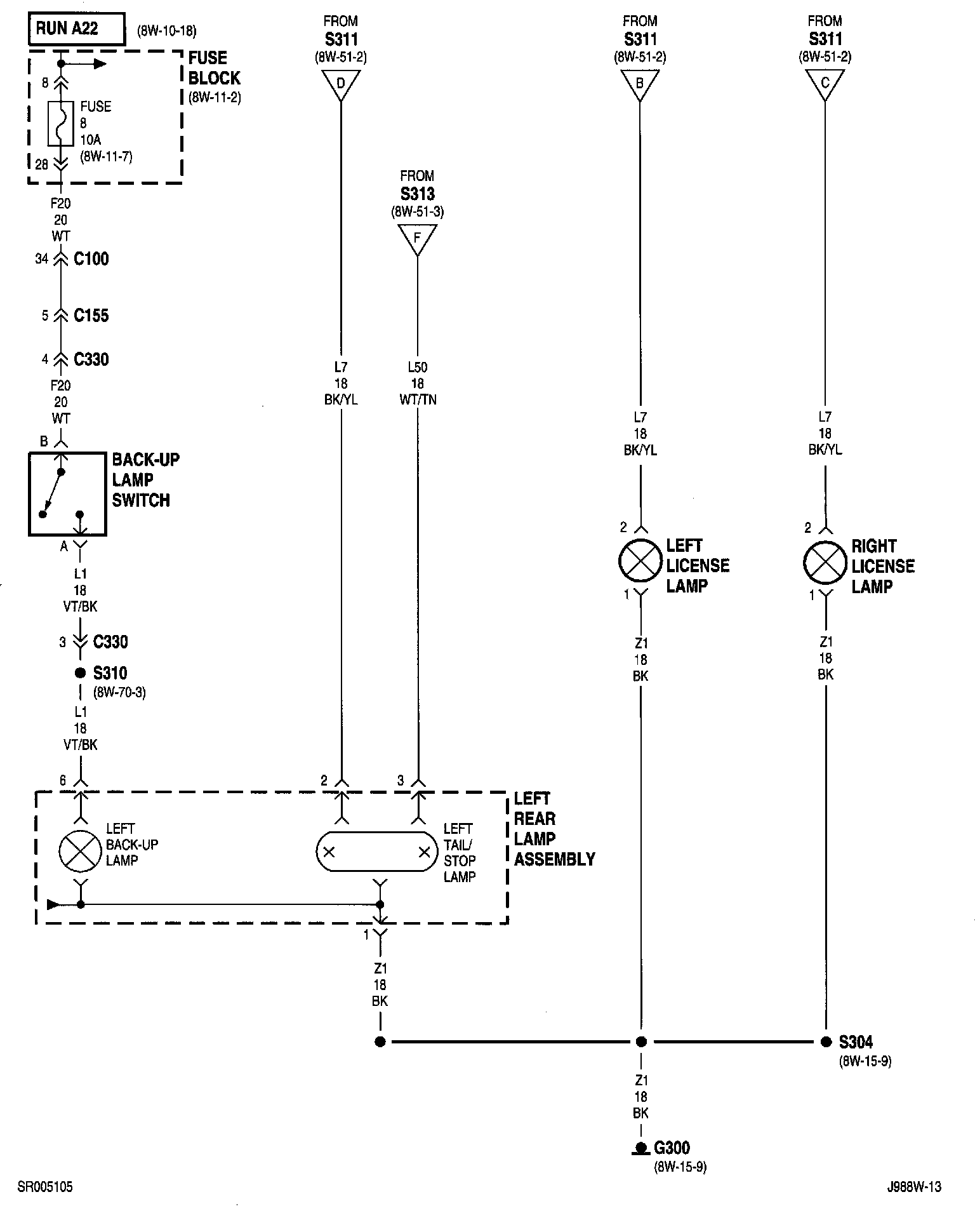

8w-51-4 (Coupe):

Back-Up Lamp Switch
Fuse 8 (FB)
Fuse Block
G300
Left Back-Up Lamp
Left License Lamp
Left Rear Lamp Assembly
Left Tail/Stop Lamp
Right License Lamp

8w-51-5 (Roadster):

Back-Up Lamp Switch
Fuse 8 (FB)
Fuse Block
G300
Left License Lamp
Left Rear Lamp Assembly
Right License Lamp

8w-51-6 (Coupe):

Back-Up Lamp Switch
Center High Mounted Stop Lamp
Fuse 8 (FB)
Fuse Block
G300
Right Back-Up Lamp
Right Rear Lamp Assembly
Right Tail/Stop Lamp

8w-51-7 (Roadster):

Back-Up Lamp Switch
Center High Mounted Stop Lamp
Fuse 8 (FB)
Fuse Block
G300
Right Back-Up Lamp
Right Rear Lamp Assembly
Right Tail/Stop Lamp


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
