Fuel Injector

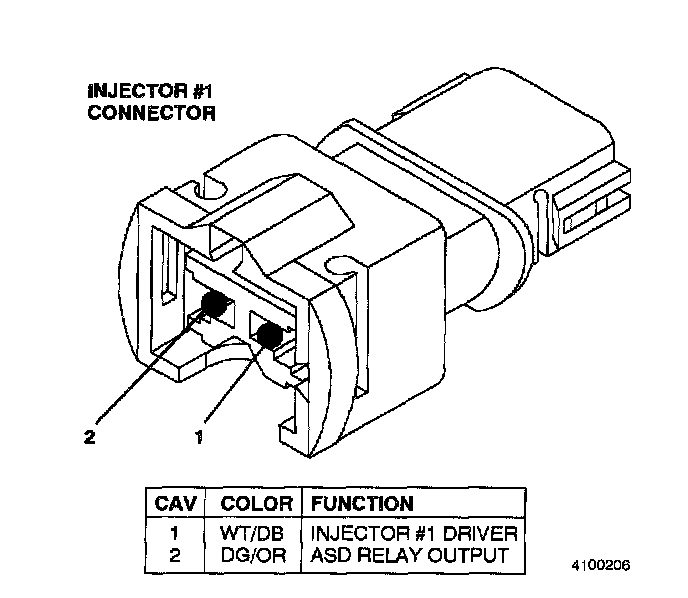

Injector # 1:




Injector # 2:




Injector # 3:




Injector # 4:




Injector # 5:




Injector # 6:




Injector # 7:




Injector # 8:




Injector # 9:




Injector # 10:
