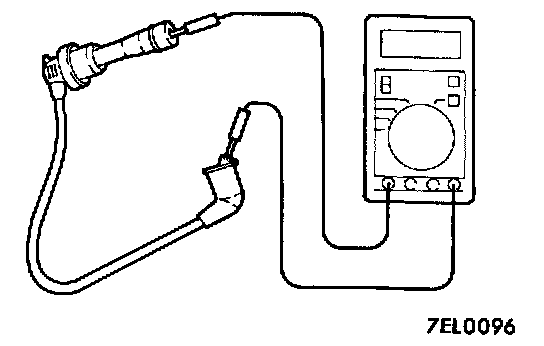

Spark Plug Cable Resistance Check
Spark Plug Cable Resistance Check
Measure the resistance of the all
spark plug
leads.
1.
Check cap and coating for cracks.
2.
Measure resistance.
Limit: max.
22 k ohm
