Rear

NOTE: For replacement of the upper control arm isolator bushings, the upper control arm must be removed from the vehicle.

REMOVAL
1. Remove the upper control arm from the vehicle.

CAUTION: The jaws of the vise must be covered with protective caps to protect the surface of the control arm from damage.





2. Clamp the upper control arm securely in a vise.





3. Assemble Remover, Special Tool 6969-2, or equivalent bolt, nut and thrust washer as shown.





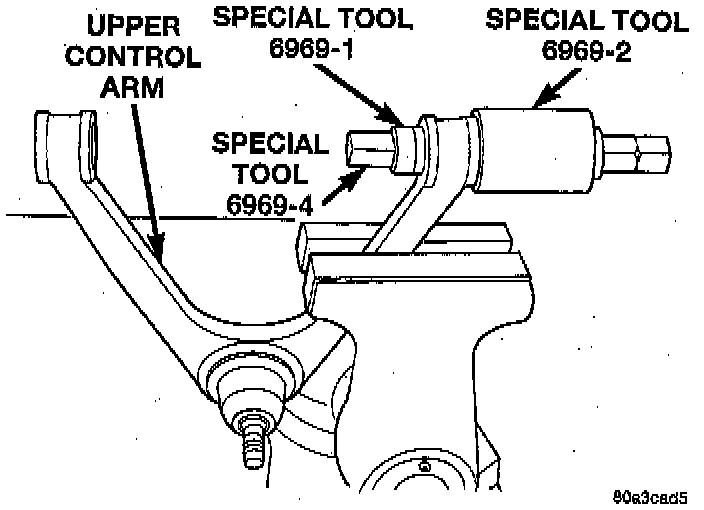

4. Install the assembled pieces of Remover, Special Tool 6969-2, or equivalent on the lower control arm. Then install Remover, Special Tool 6969-1, or equivalent and Nut, Special Tool 6969-4 on the bolt of Remover, Special Tool 6969-2, or equivalent.
5. Isolator bushing is removed from control arm using the following procedure. Hold the bolt of Remover, Special Tool 6969-2, or equivalent from turning while rotating the nut. This will pull the isolator bushing out of the control arm.





6. Transfer Remover, Special Tool 6969-2, Remover, Special Tool 6969-1 and Nut, Special Tool 6969-4, or equivalents to the remaining isolator bushing in the upper control arm.
7. Remove the second isolator bushing from the control arm using the following procedure. Hold the bolt of Remover, Special Tool 6969-2, or equivalent from turning while rotating the nut. This will pull the isolator bushing out of the upper control arm.

INSTALLATION
1. Install the isolator bushing into the control arm by hand making sure it is installed squarely into the hole in the control arm.





2. Install isolator bushing in lower control arm using an arbor press. Support the control arm using Receiver, Special Tool L 4422-1, or equivalent. Press the isolator bushing into the lower control arm using Driver, Special Tool 6768, or equivalent.





3. Press the isolator bushing into the control arm until the flange of the bushing is squarely seated against the control arm. No gap is allowed between the flange of the isolator bushing and the control arm.
4. Install the second isolator bushing into the control arm.
5. Position the control arm in the arbor press. Support the control arm using Receiver, Special Tool L 4422-1, or equivalent. Press the isolator bushing into the lower control arm using Driver, Special Tool 6758, or equivalent.
6. Press the isolator bushing into the control arm until the flange of the bushing is squarely seated against the control arm. No gap is allowed between the flange of the isolator bushing and the control arm.
7. Install the upper control arm on the vehicle.
