Home
>>
Dodge
>>
1998
>>
Stratus L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
System Diagram
System Diagram

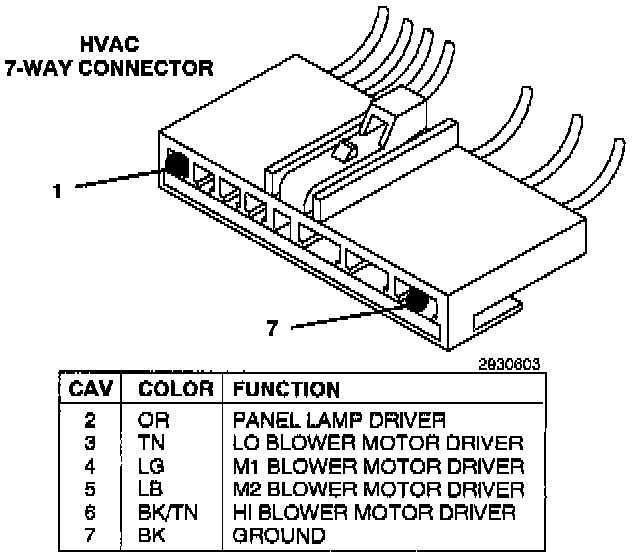

HVAC Connector:
HVAC Connector:
