Home >> Dodge >> 1997 >> Stratus V6-2.5L VIN H >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Oxygen Sensor >> Diagrams >> Upstream Oxygen Sensor

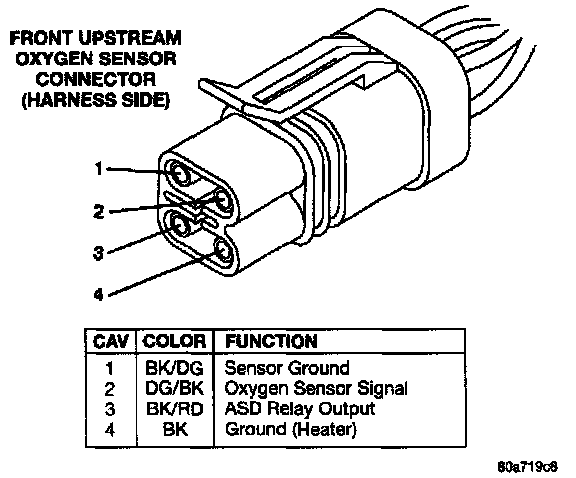

Upstream Oxygen Sensor

Front Upstream Oxygen Sensor:
