Junction Block

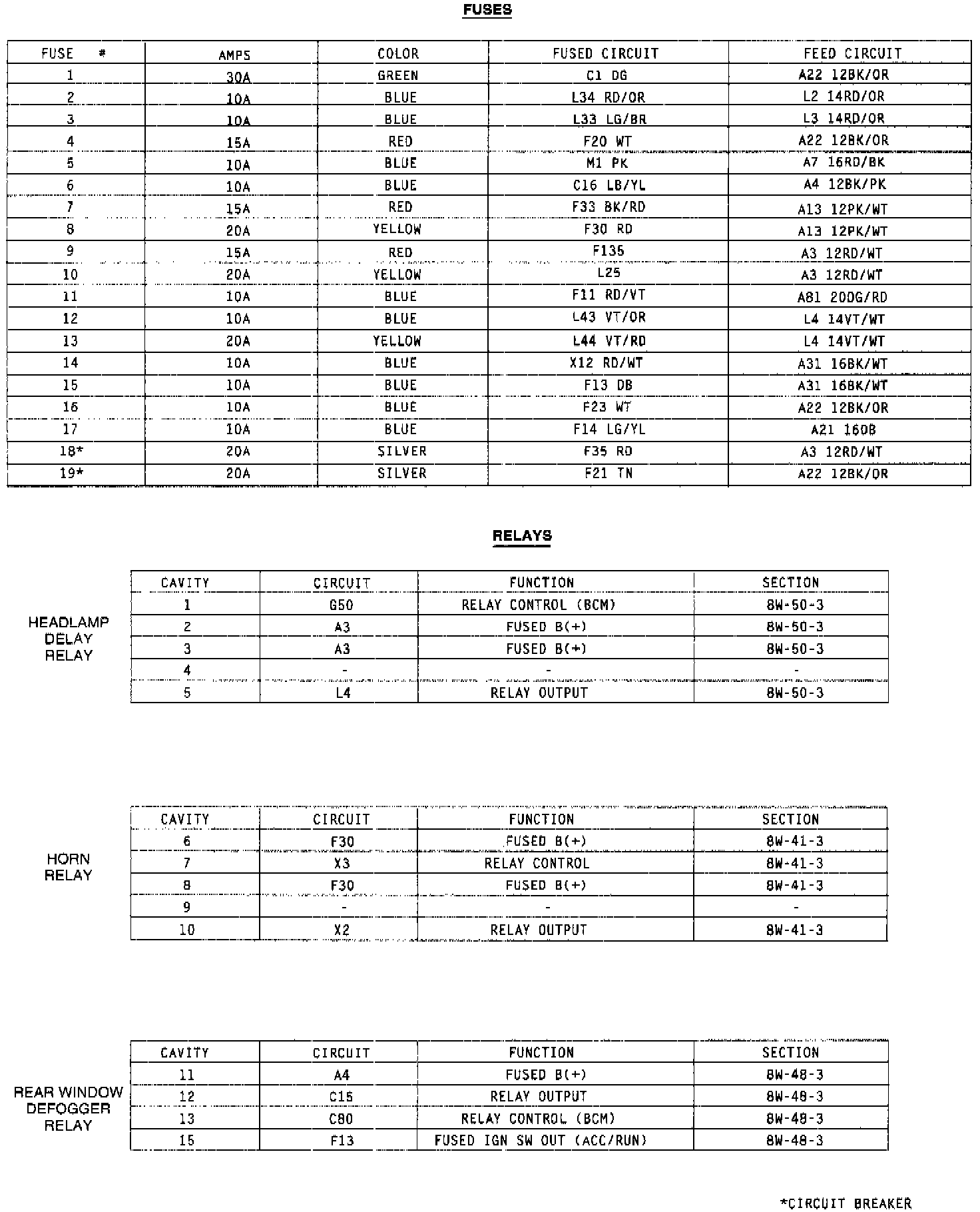

Junction Block:




Junction Block:




Junction Block:






NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
