Axle Shaft Seals

REMOVAL

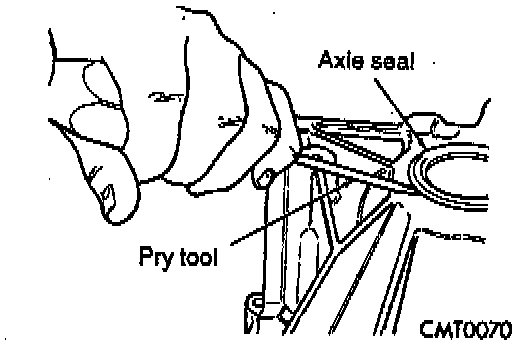

1. Insert a flat blade pry tool at outer edge of axle shaft seal.
2. Tap on the pry tool with a small hammer and remove axle shaft seal.





INSTALLATION
1. Clean axle shaft seal bore of any excess sealant.
2. Align axle shaft seal with axle shaft seal bore.

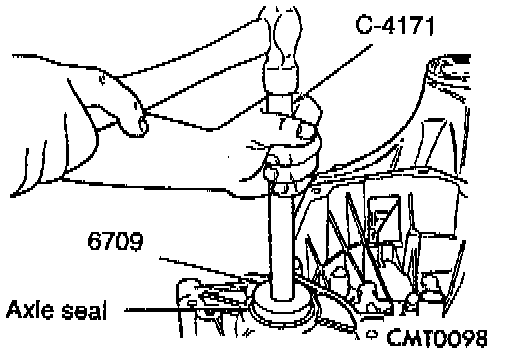

3. Install axle seal on tool #6709 w/C-4171, or equivalents and insert into axle shaft seal bore.
4. Tap seal into position.
