Home >> Dodge >> 1995 >> Spirit V6-181 3.0L SOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Motor >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Tests >> Test 24A: Washer Pump System Testing >> Part 2

Part 2

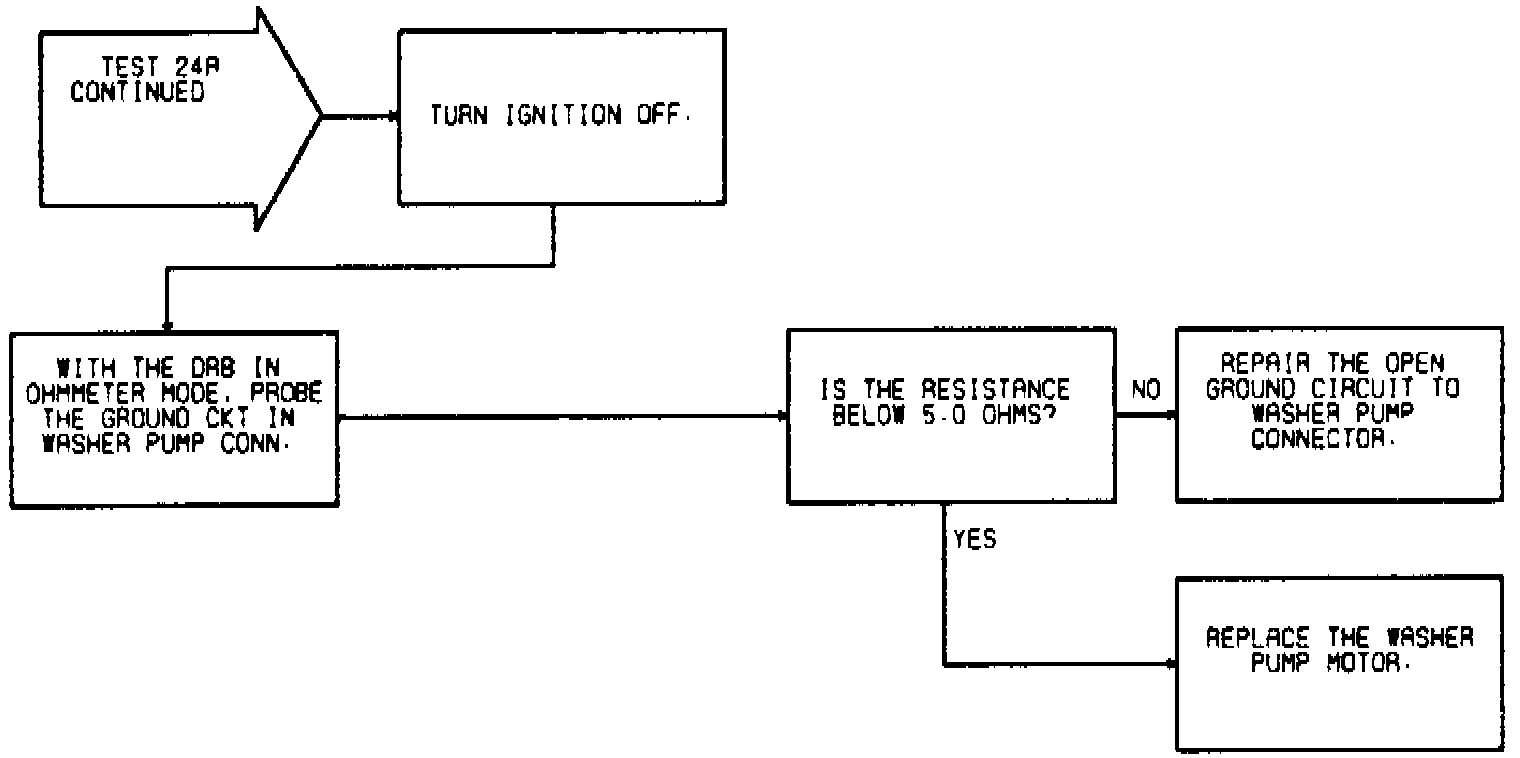

Fig.13 Test 24a: Washer Pump System Testing (Part 2 Of 2):
