Valve Cover: Service and Repair

ENGINE VALVE COVERS

REMOVAL

1. Disconnect closed ventilation system and evaporation control system from cylinder head covers.
2. Disconnect spark plug wires from engine valve covers. Remove ignition cable separators and water tubes from valve covers.






3. Remove fasteners from engine valve covers and remove them from the engine.


INSTALLATION

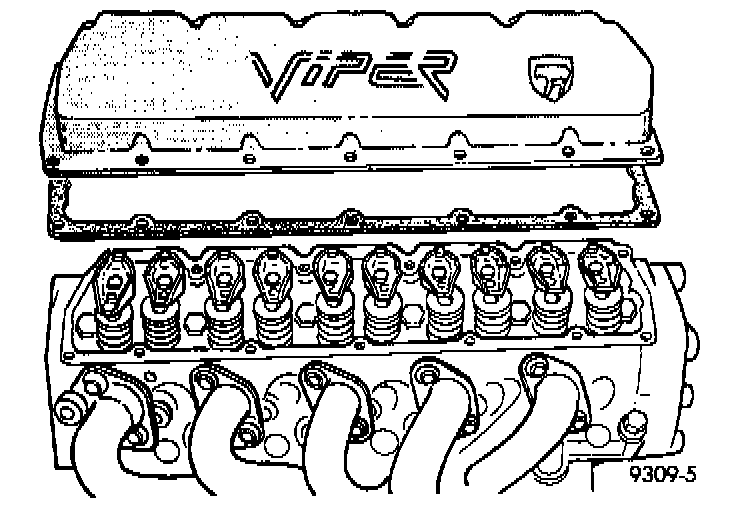

1. Place valve cover gasket onto the cylinder head. Install engine valve cover onto the cylinder head and torque fasteners to 11 Nm (95 in. lb.) in sequence.
2. Install closed ventilation system and evaporation control system to cylinder head cover.
3. Install spark plug wires onto their correct position.
