Home >> Dodge >> 1994 >> Shadow Convertible V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems

Wiper and Washer Systems

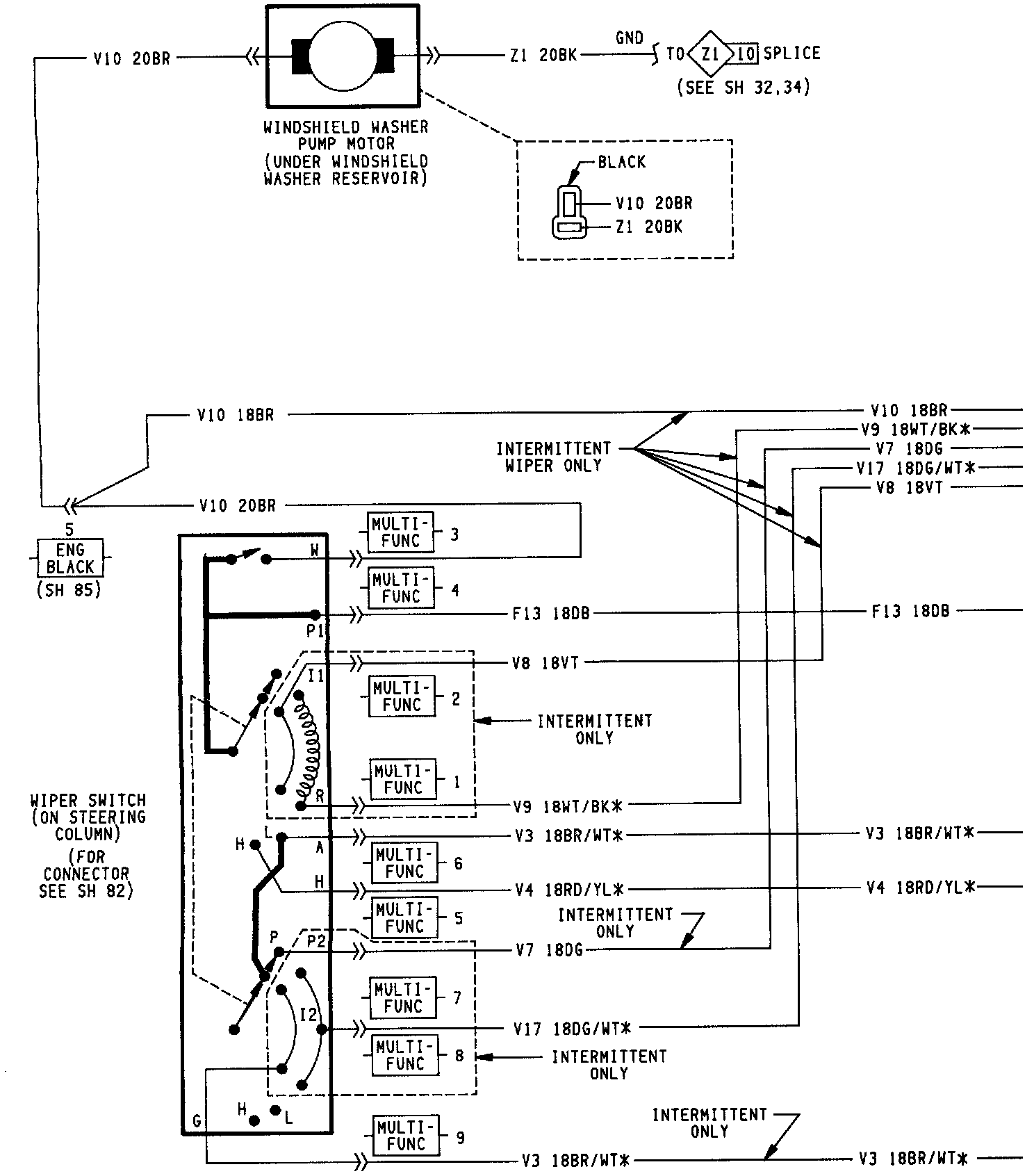

Wiper System (Part 1 of 2):



Wiper System (Part 2 of 2):
