D Connectors - Instrument Panel & Floor Console Harness
D Connectors - Instrument Panel & Floor Console Harness

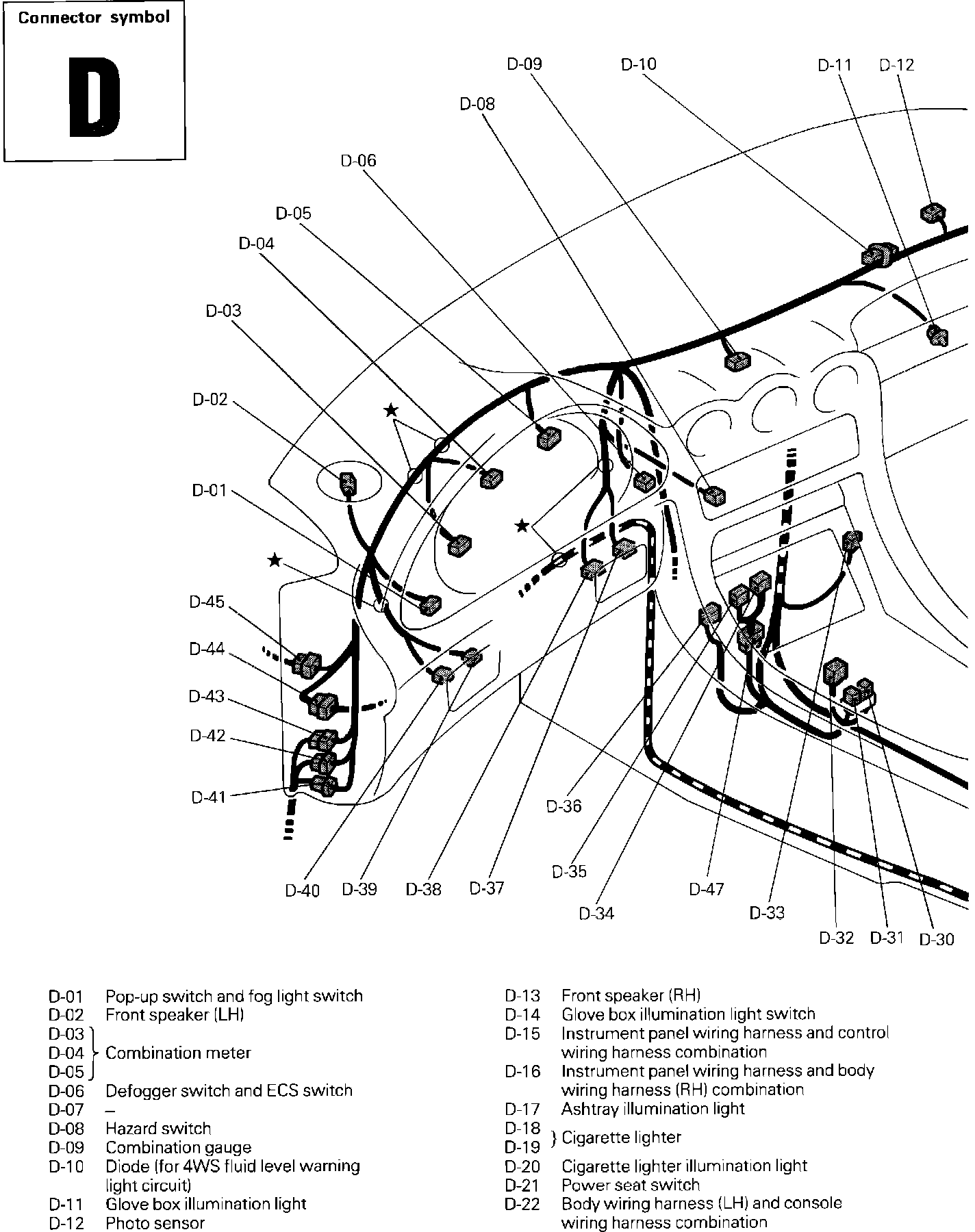

Connector Locations (Instrument Panel And Floor Console):
Connector Locations (Instrument Panel And Floor Console):
