Suspension Control
>>
7C Testing Compressor Operation
7C Testing Compressor Operation

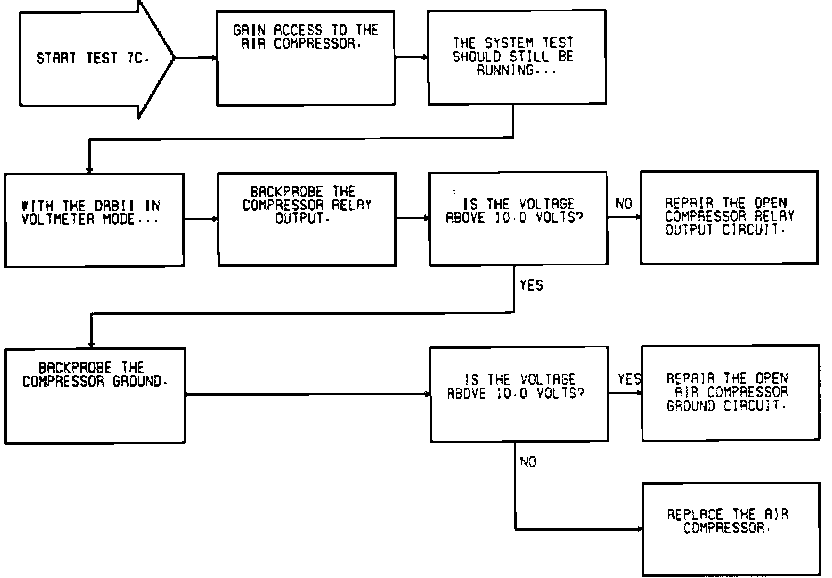

Fig. 38 Test 7C Compressor Operation:
