Home >> Dodge >> 1992 >> Dynasty V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Diagrams >> Connector Views >> Relay Block

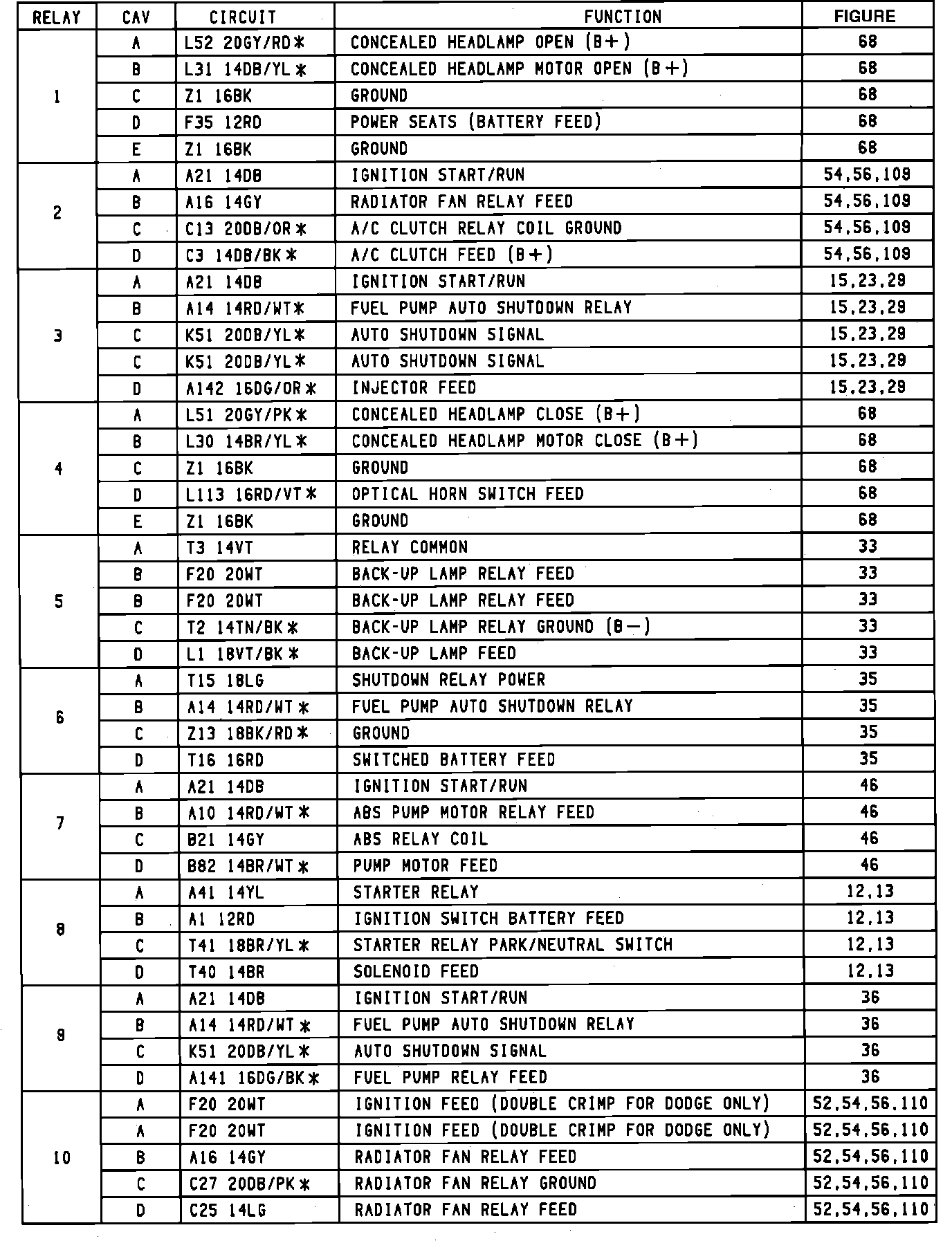

Relay Block

Relay Bank AC, AY Body:



Power Distribution Center AC, AY Body:



Power Distribution Center:



Power Distribution Center:



Relay Bank (located Above Glovebox):
