Door Glass - Wind Noise

91chrysler02

SUBJECT: Stealth Door Wind Noise - Revised Specification/Service Manual Revision


NO.: 23-01-91


GROUP: BODY


DATE: Feb. 11, 1991


MODELS:

1991 (B7) Stealth

SYMPTOM/CONDITION

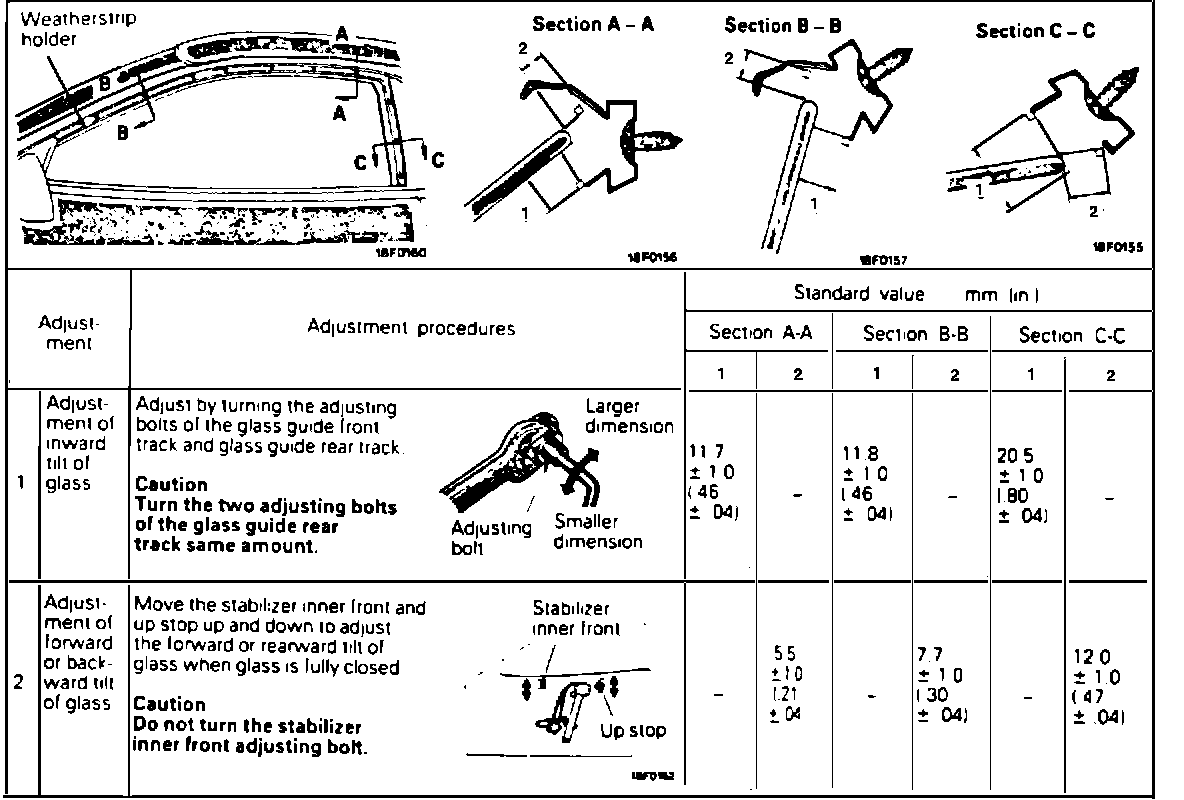

Stealth models built prior to November 1, 1990 may exhibit a wind noise along the top of the left door glass. To eliminate this condition, the clearance specification between the weatherstrip holder and the door glass (Section A-A) has been decreased as indicated in red on the chart below. When adjusting the door glass in vehicles built prior to the date given above, use the revised specification with the adjustment procedure on pages 23A-21 thru 23 in the 1991 Stealth Import Service Manual, Volume 1, (PN81-270-1115).


NOTE: ALTHOUGH THIS CONDITION EXISTS PRIMARILY IN THE LEFT DOOR, THE REVISED SPECIFICATION WILL ALSO APPLY TO THE RIGHT DOOR.

A duplicate chart appears on the attached page and should be affixed over the existing chart on page 23A-22 in the 1991 Stealth Import Service Manual, Volume 1, (PN81-270-1115).

POLICY: Information only
