Dodge
>>
1991
>>
Shadow Convertible L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Rear Lighting
>>
Convertible
Convertible

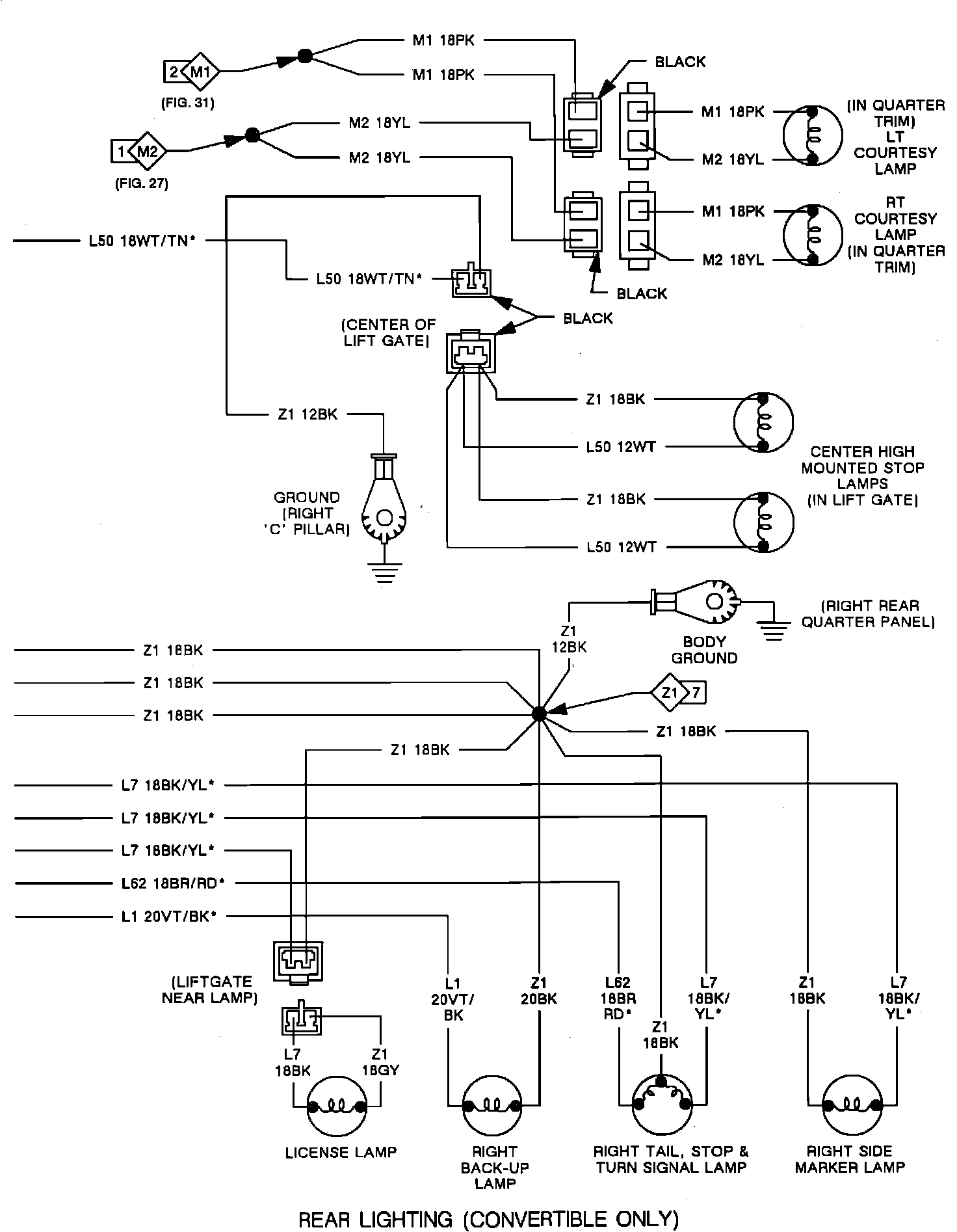

Rear Lighting (Convertible):
Rear Lighting (Convertible):
