4 Checking R02 & R12 Wires For Open Circuit
4 Checking R02 & R12 Wires For Open Circuit

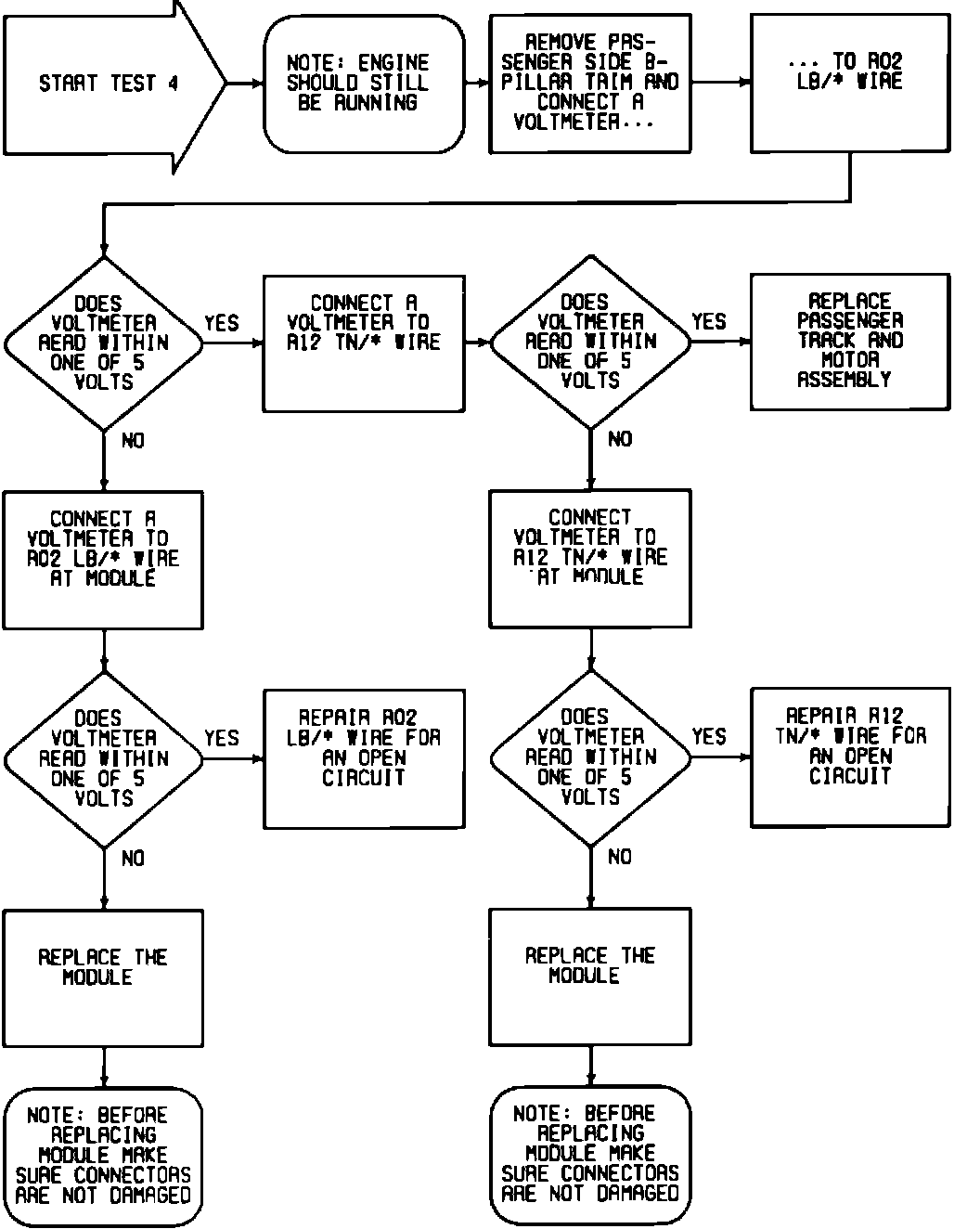

Fig. 106 Test 4 (Checking R02 & R12 Wires For Open Circuits):
