No Start Test
>>
No Start (NS) Tests
>>
NS-5A Checking Coil & Control Circuit
NS-5A Checking Coil & Control Circuit

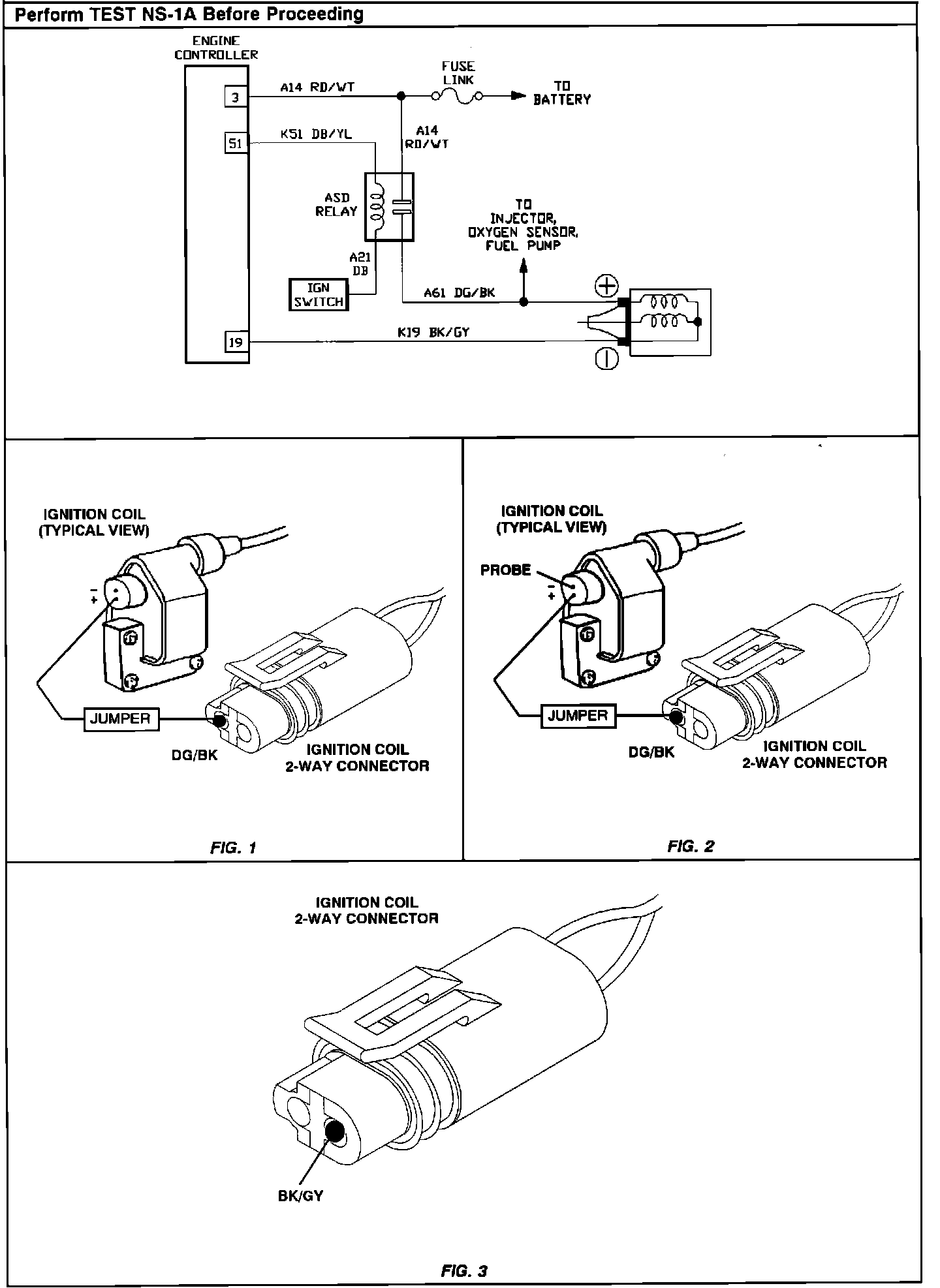

Test NS-5A - Checking Ignition Coil:
Test NS-5A - Checking Ignition Coil:
Test NS-5A - Checking Ignition Coil:
Test NS-5A - Checking Ignition Coil:
