Dodge
>>
1990
>>
Spirit V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signals
>>
With Tilt Wheel
With Tilt Wheel

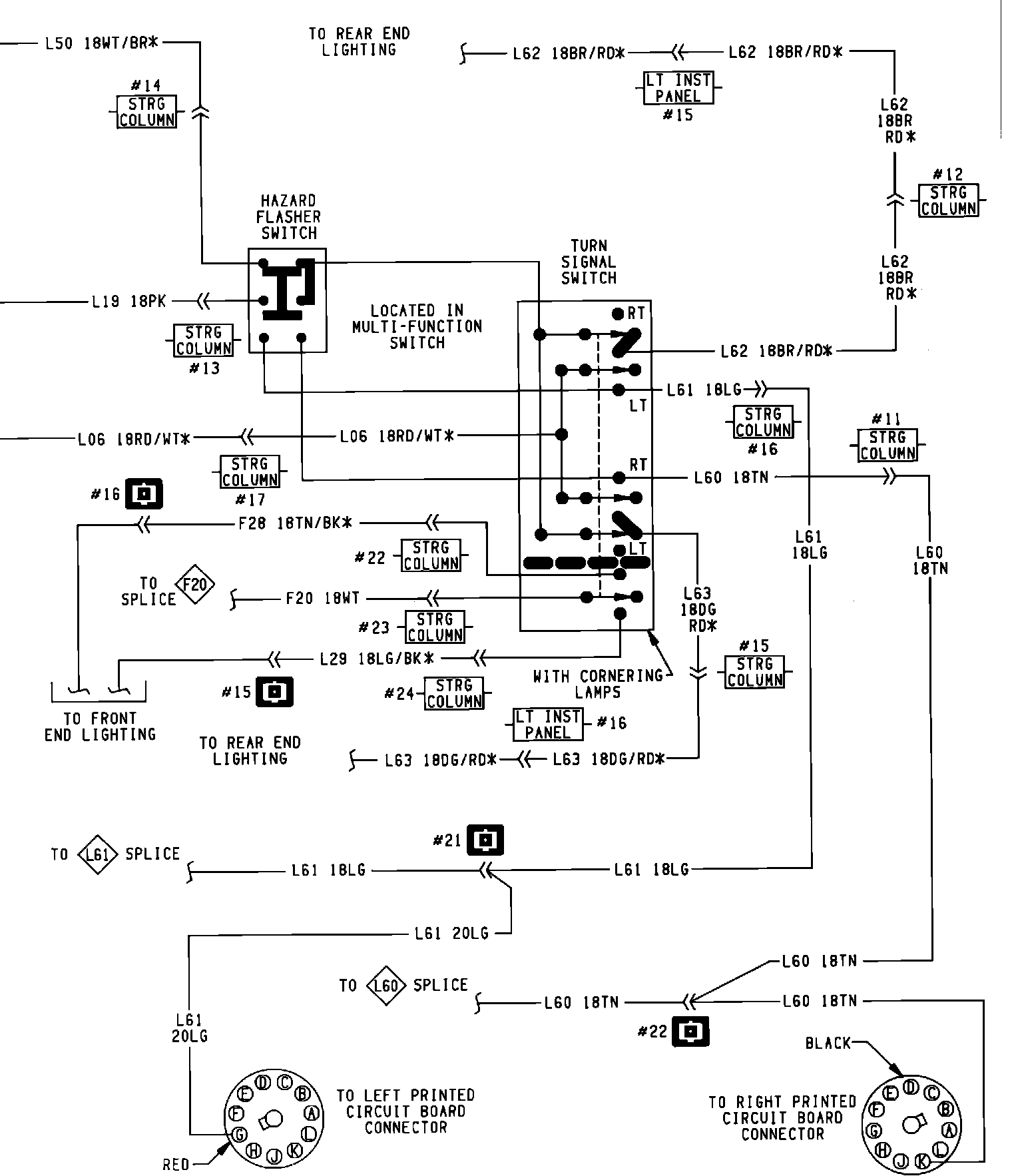

Turn/Stop & Hazard Flasher System Tilt Steering Column - Part 1:
Turn/Stop & Hazard Flasher System Tilt Steering Column - Part 2:
