Home >> Dodge >> 1990 >> Shadow L4-135 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Less Tilt

Less Tilt

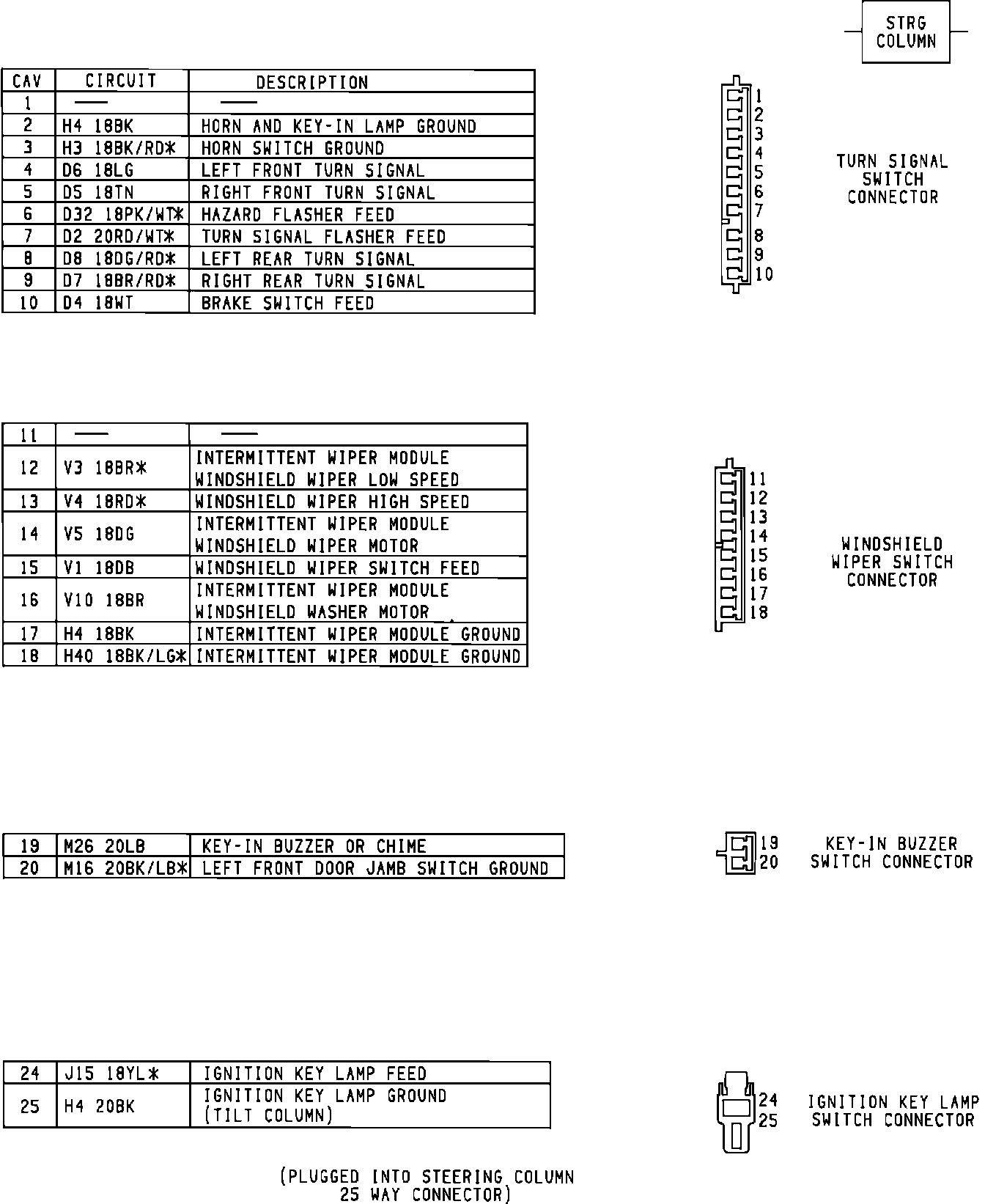

Steering Column Switch To Panel Connector - Less Tilt:



Steering Column Switch To Panel Connector - Less Tilt:
