A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Verification Tests
>>
Verification Test VER-1C - Accumulator Switch Input Circuit - ABS
Verification Test VER-1C - Accumulator Switch Input Circuit - ABS

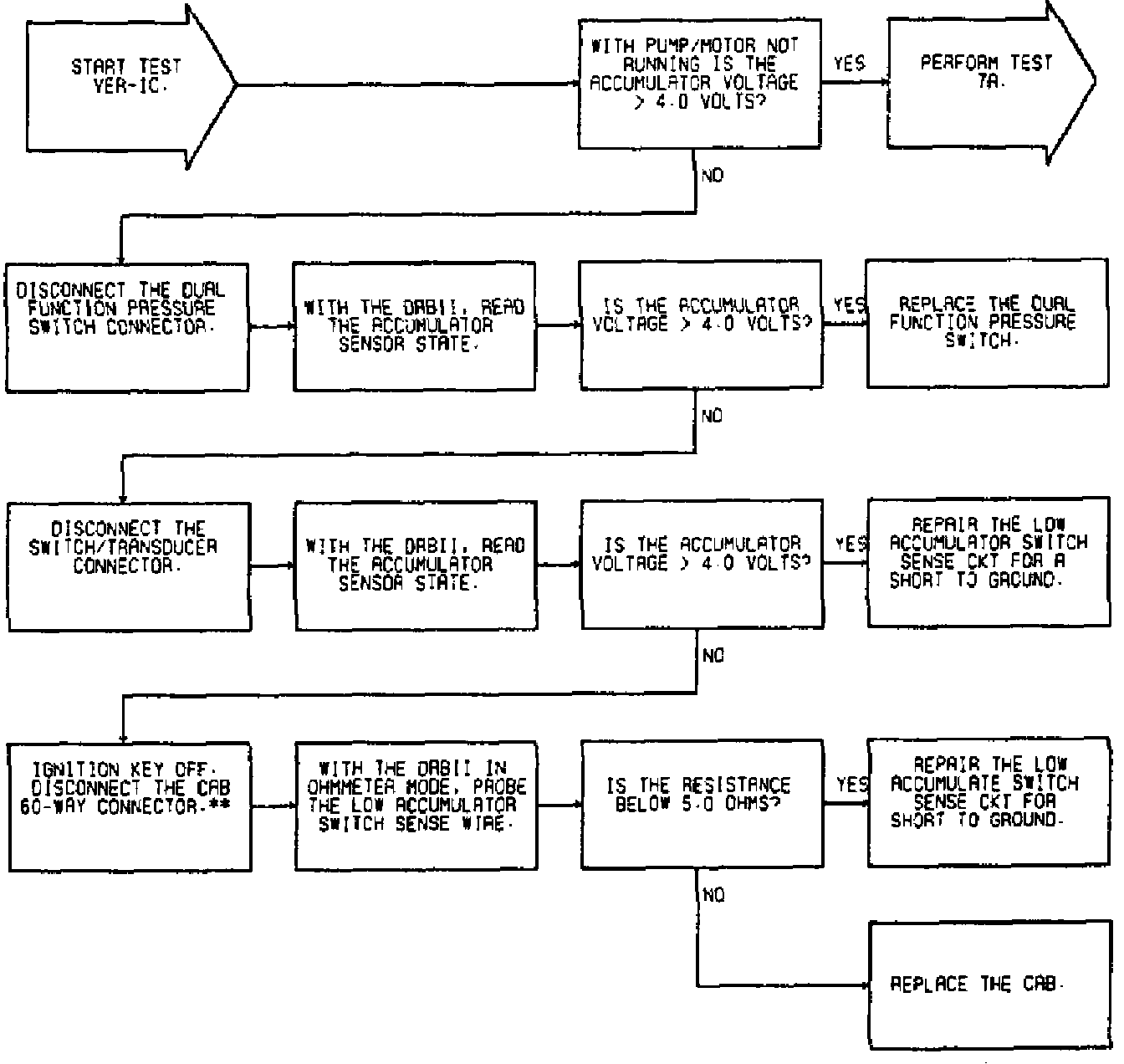

Fig. 158 Test VER-1C:
