Home >> Dodge >> 1990 >> Dynasty V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-33 Checking Idle Motor Circuits >> Part 2 of 2

Part 2 of 2

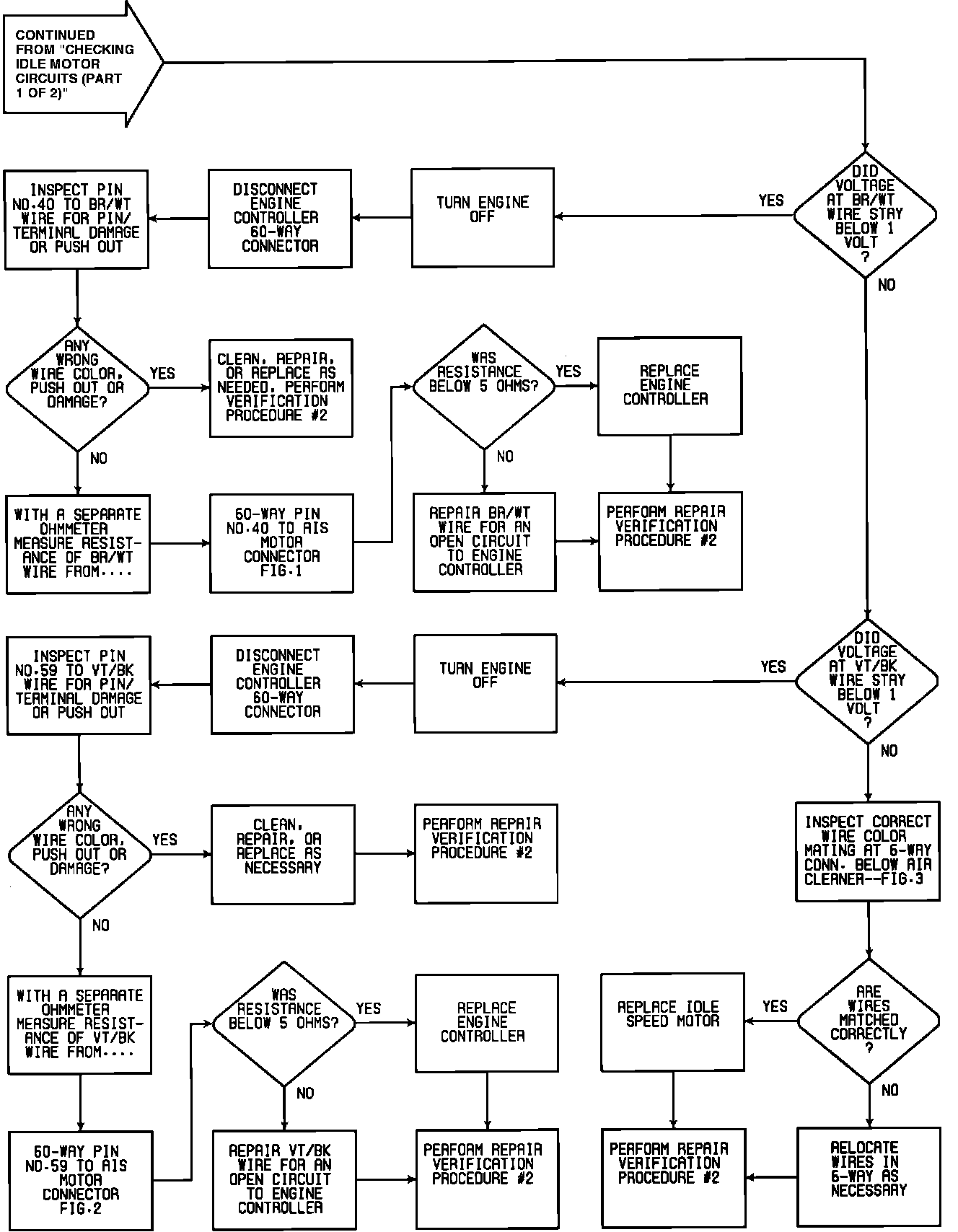

Checking Idle Motor Circuits:



Checking Idle Motor Circuits:
