Home >> Dodge >> 1989 >> Lancer L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Management

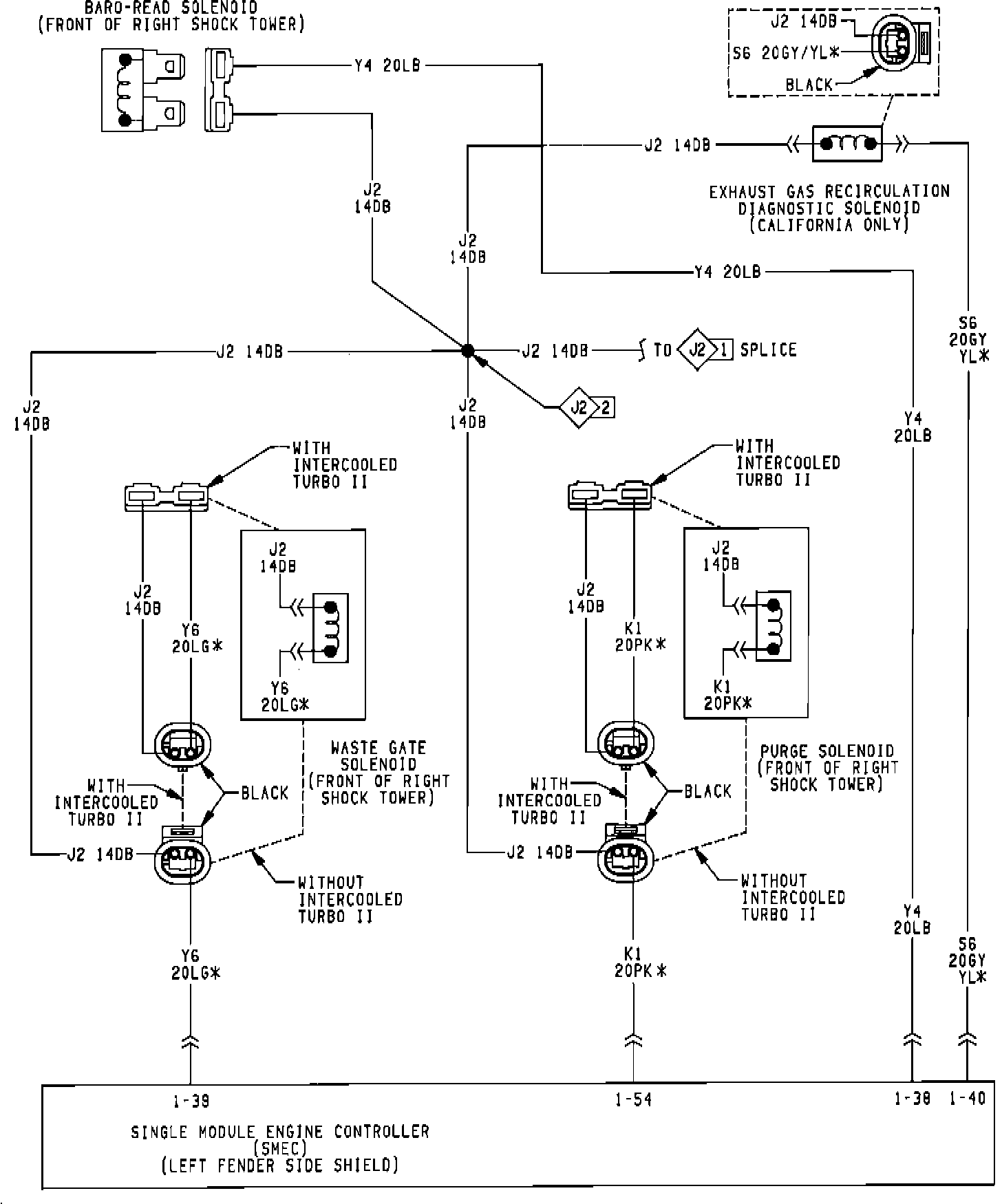

Engine Management

Part 1:



Part 7:



Part 6:



Part 5:



Part 4:



Part 3:



Part 2:
