A/T Wiring Diagram - Manual Revisions

91chrysler01

Models


1989 AC & AS Bodies


Subject


Service Manual Wiring Diagram Revisions


Index

ELECTRICAL

Date

May 8, 1989

No.

08-10-89

P-1773 (C08-14-89)


BODY CODE LEGEND


AC - DYNASTY/NEW YORKER/LANDAU AS - CARAVAN/VOYAGER/CARAVAN C/V

SERVICE MANUAL REVISION


Some A-604 transmission wiring diagrams in both the 1989 Front-Wheel-Drive Passenger Car Wiring Diagrams Service Manual Publication # 81-270-9004, and the 1989 Front-Wheel-Drive Van Publication # 81-370-9005 are in error.

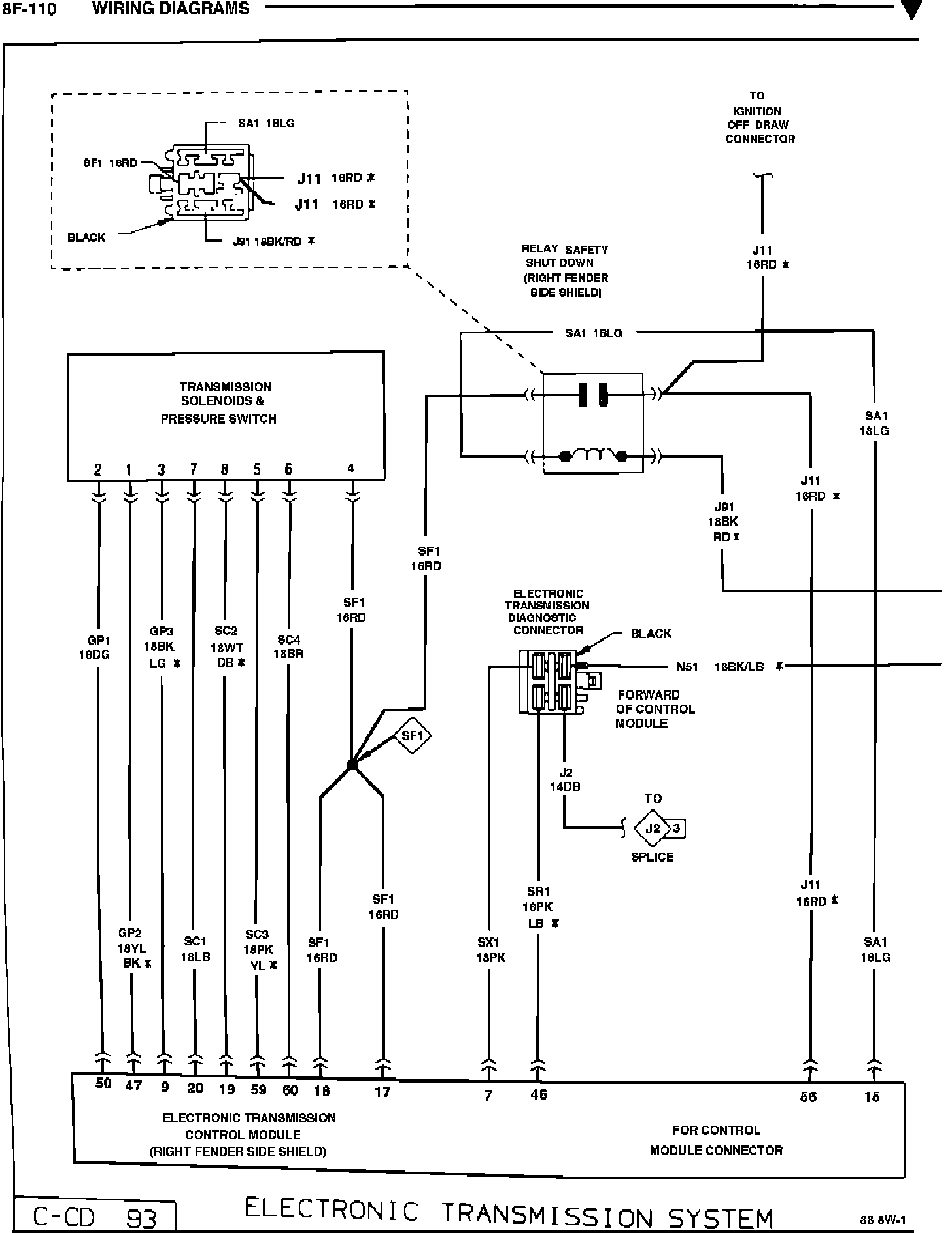

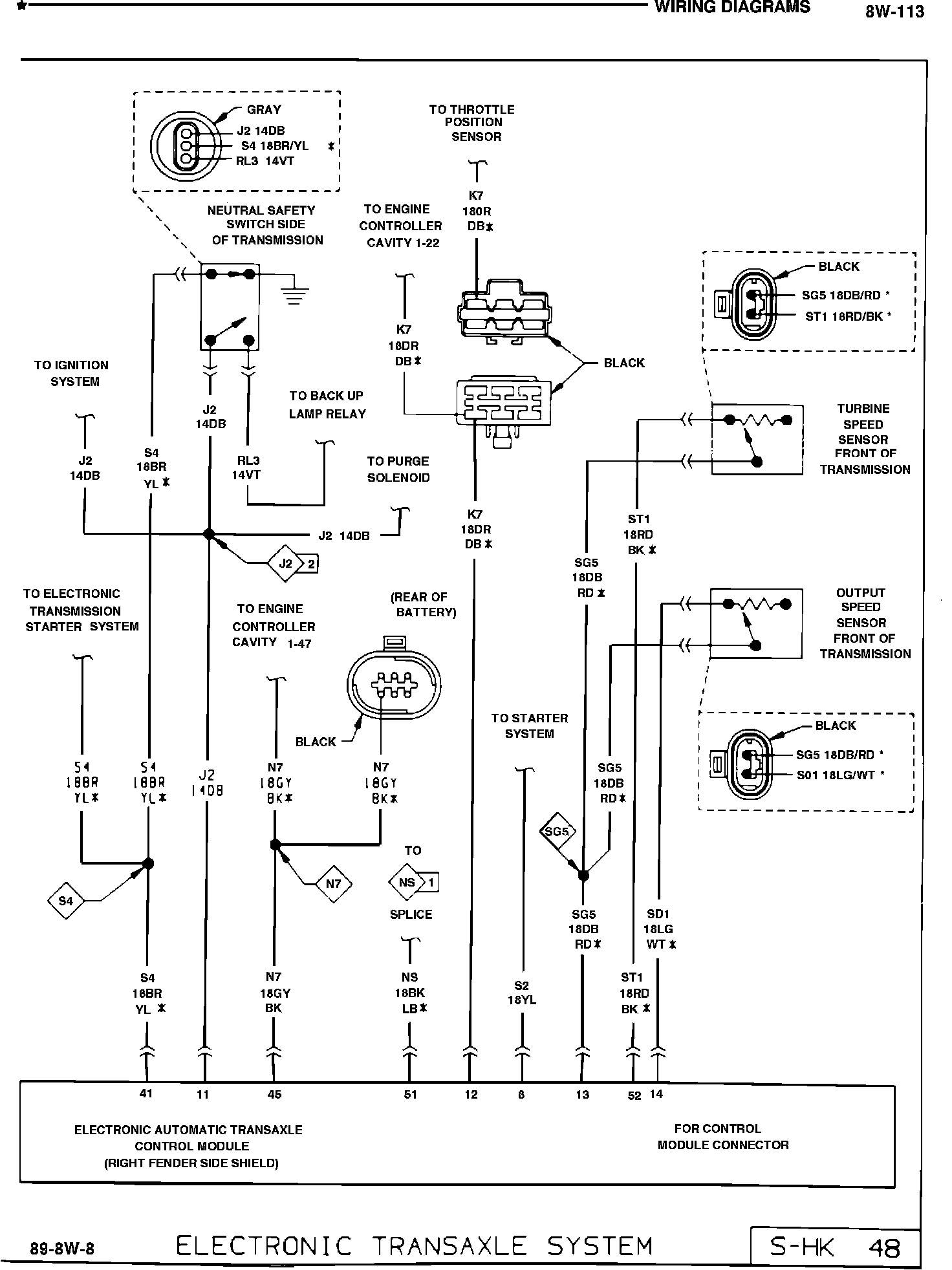

Please insert revised pages S-HK47 and S-HK48 into their respective places in S-Body Publication # 81-370-9005. Please insert revised pages C-CD92, C-CD93, C-CD94, C-CD104, and C-CD126 into their respective pages of C-Body Publication # 81-270-9004.

POLICY: Information only
