Front End Lighting

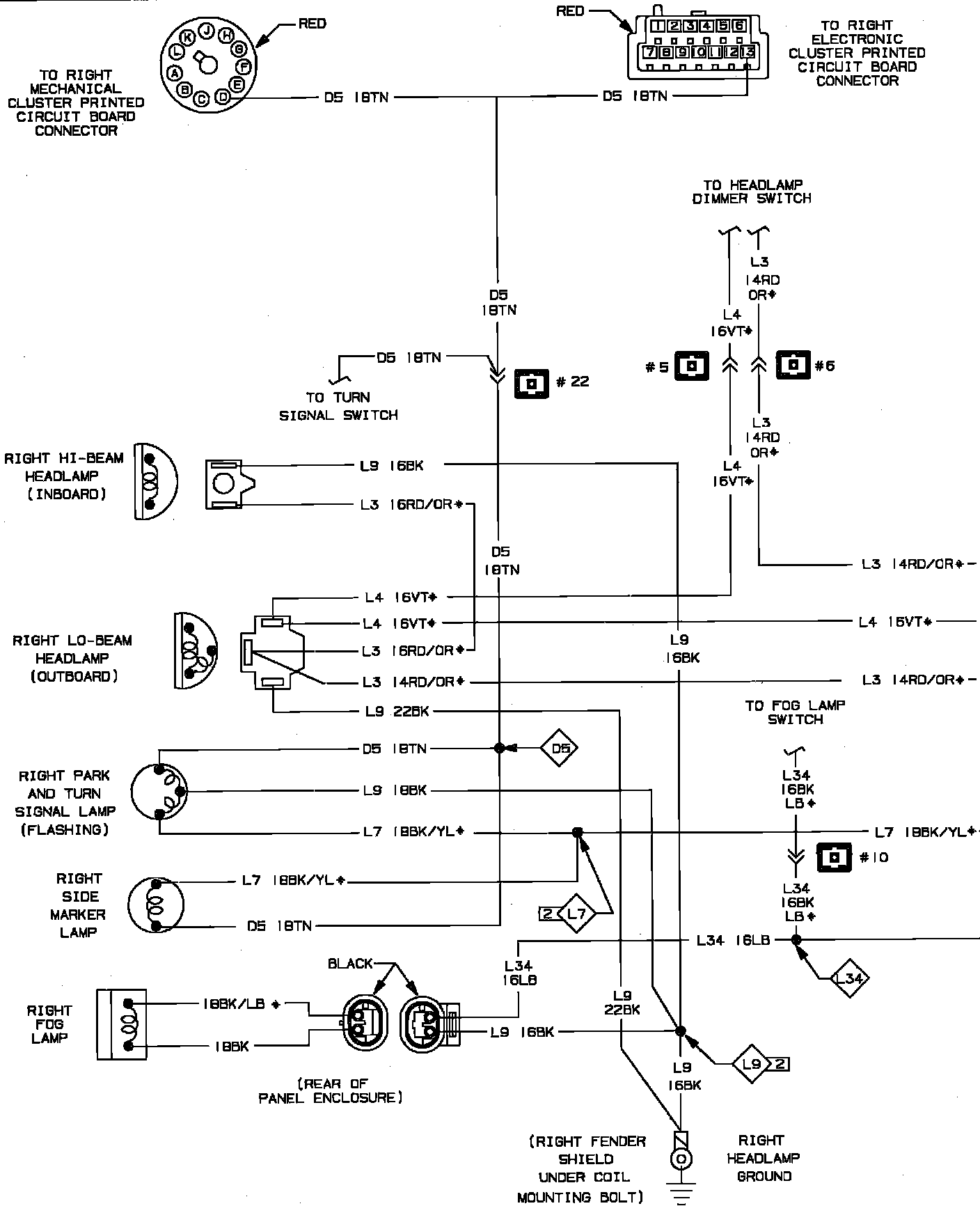

Front End Lighting Wiring Circuit (Part 1 of 2):

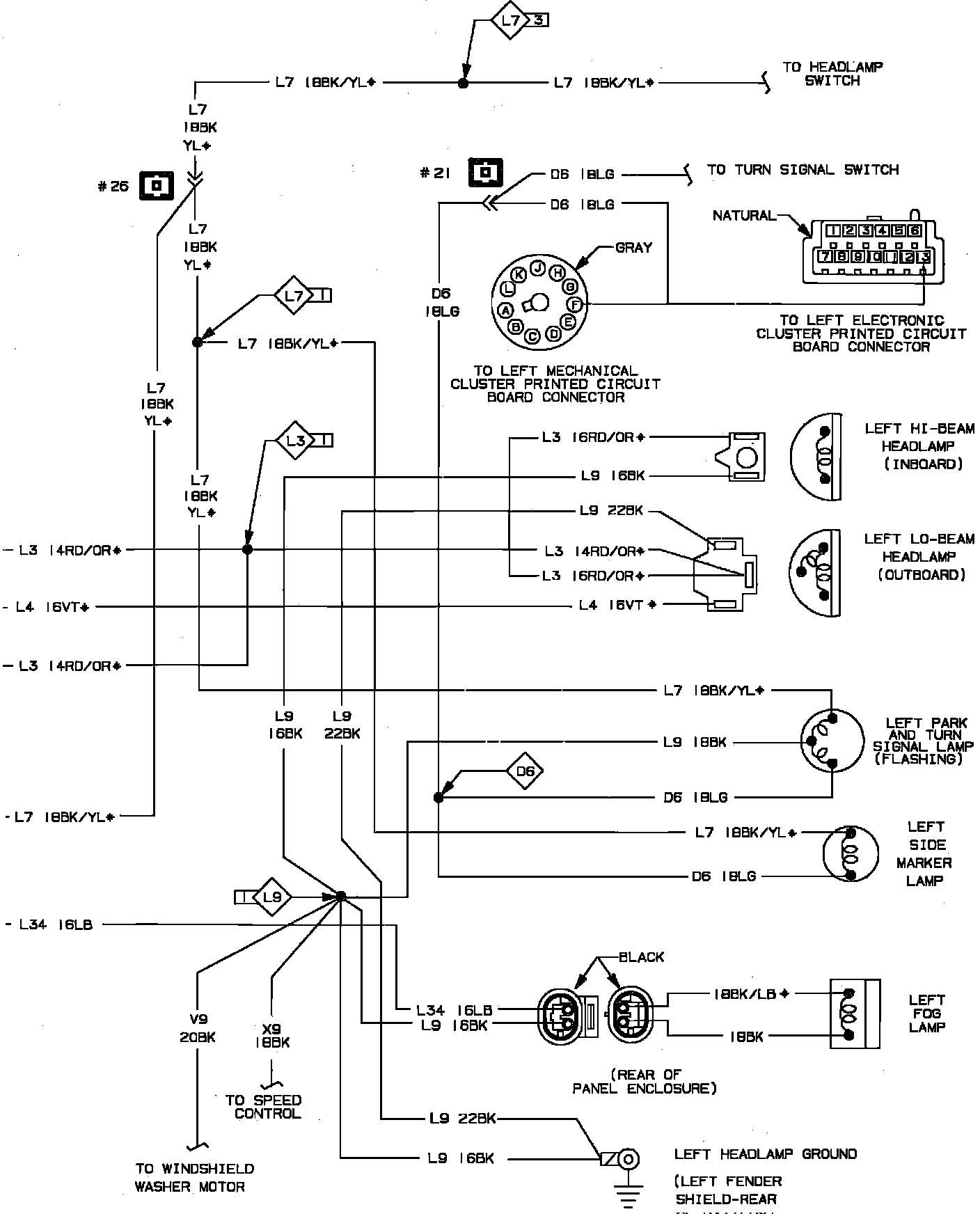

Front End Lighting Wiring Circuit (Part 2 of 2):
