With Concealed Headlamps

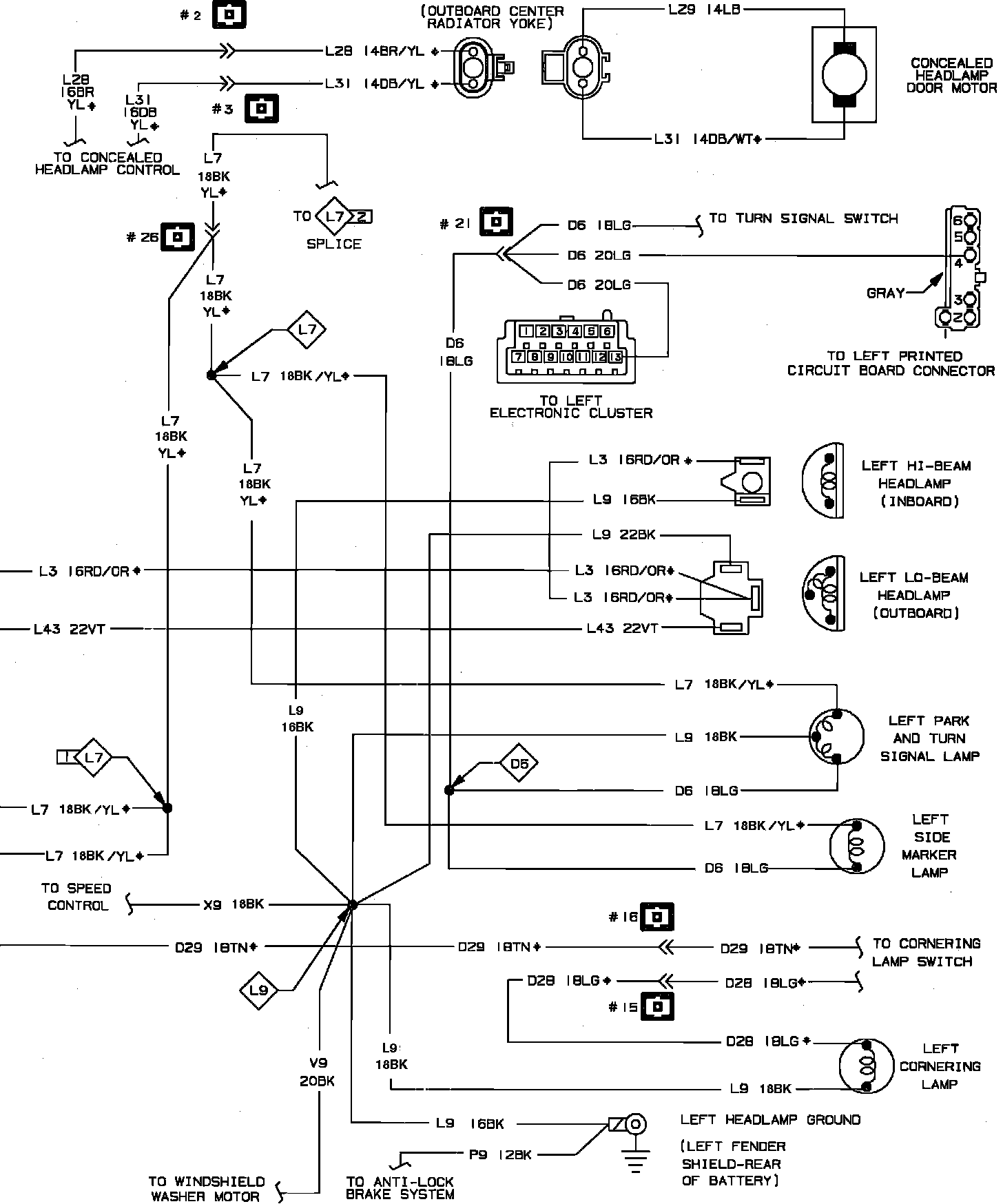

Front End Lighting Wiring Circuit. With Concealed Headlamps:



Front End Lighting Wiring Circuit. With Concealed Headlamps:
