Home >> Dodge >> 1986 >> Daytona L4-153 2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Sensors and Switches - Ignition System >> Ignition Switch >> Diagrams >> Electrical Diagrams >> Traveler & Trip Navigator Wiring Circuit >> Part 1 of 2

Part 1 of 2

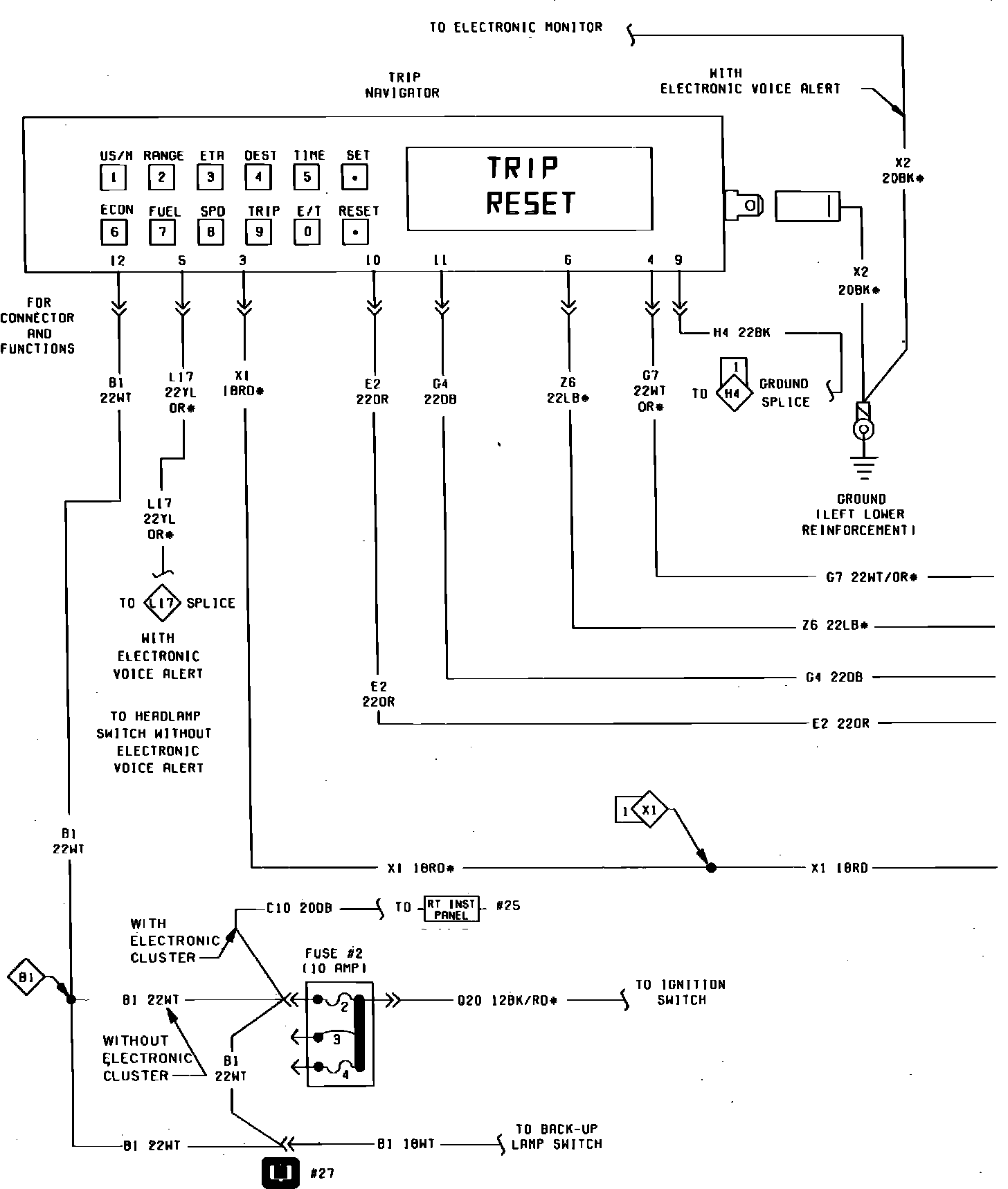

Fig. 56 Trip Navigator Wiring Circuit (Part 1 of 2):



Fig. 56 Trip Navigator Wiring Circuit (Part 2 of 2):
