Home >> Dodge >> 1986 >> Daytona L4-153 2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Electronic Cluster Wiring Circuit >> With Electronic Voice Alert

With Electronic Voice Alert

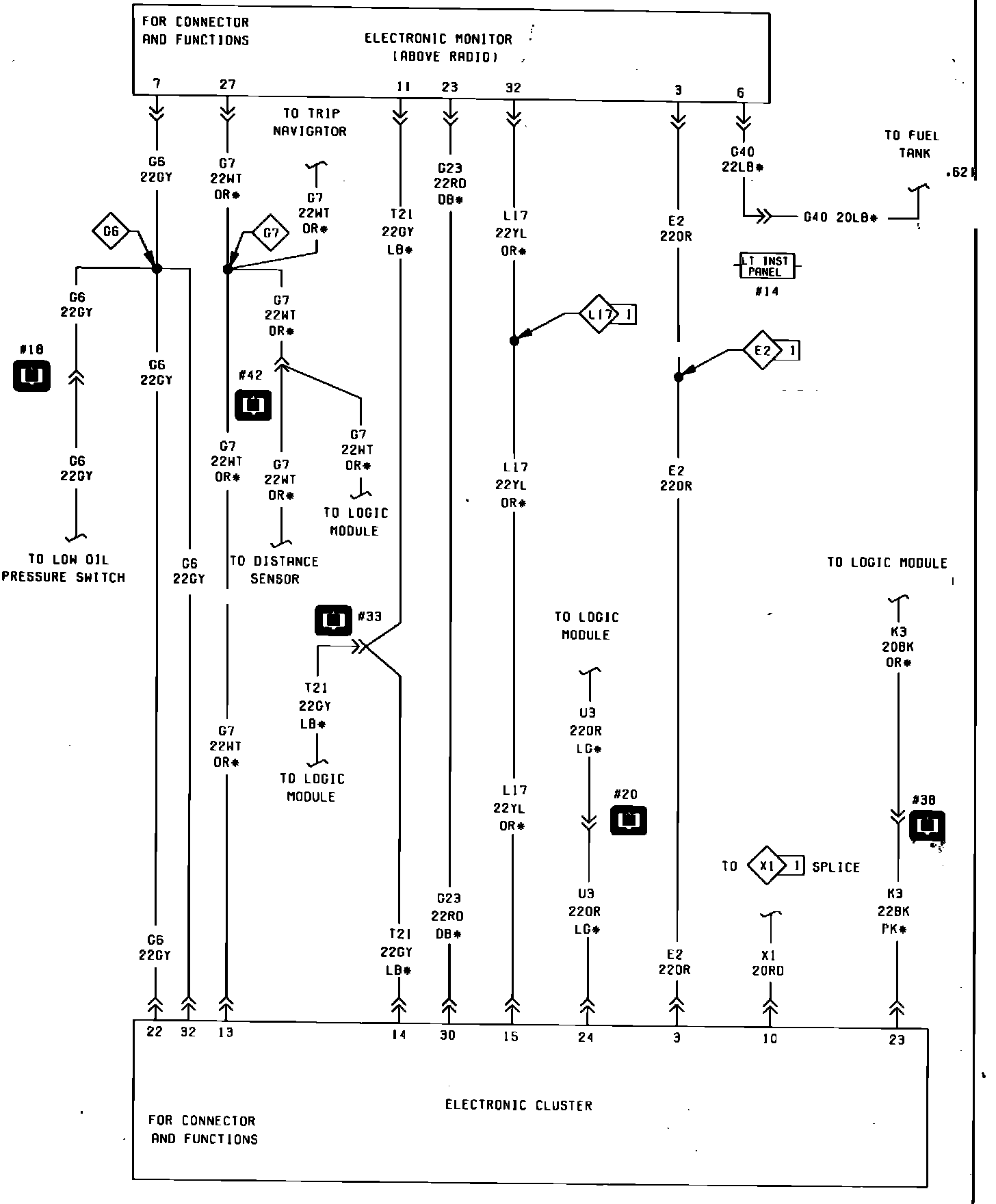

Fig. 28 Electronic Cluster Wiring Circuit. W/Electronic Voice Alert:
