Home >> Dodge >> 1986 >> Daytona L4-153 2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Driver/Vehicle Information Display >> Visual Message Center >> Part 2 of 2

Part 2 of 2

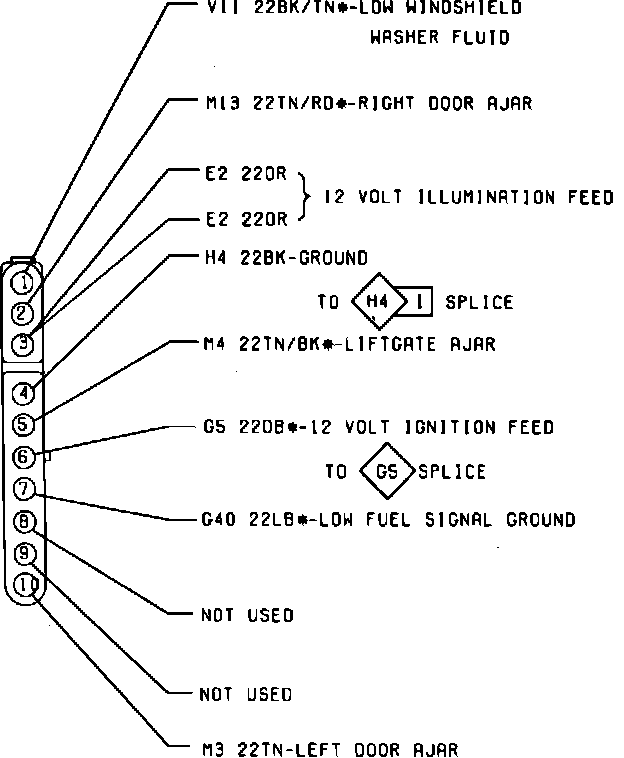

Fig. 16 Printed Circuit Board Connector (Part 2 of 2). Visual Message Center:
