Front End Lighting

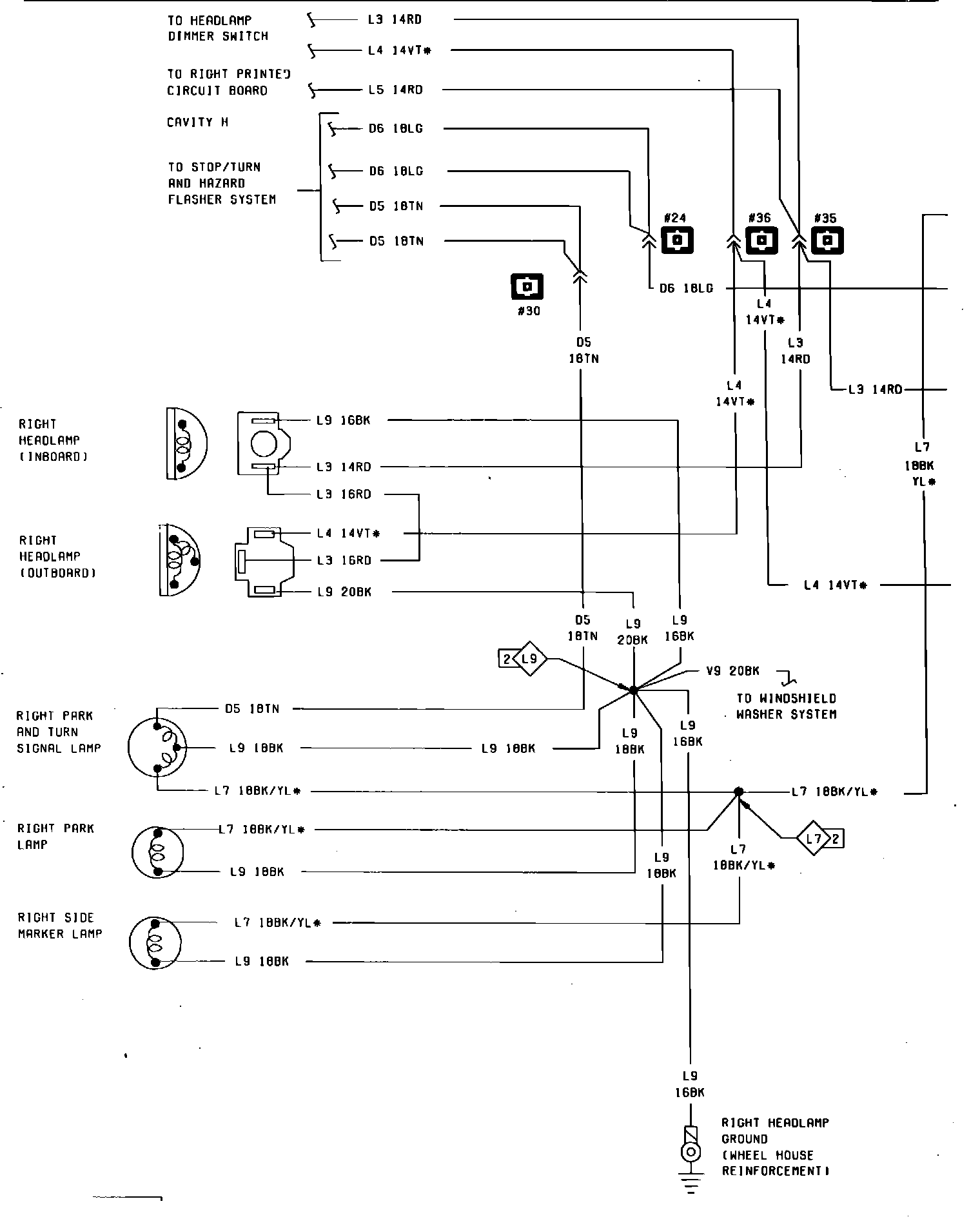

Fig. 20 Front End Lighting Wiring Circuit (Part 1 of 2):

Fig. 20 Front End Lighting Wiring Circuit (Part 2 of 2):

Fig. 15 Front End Lighting Wiring Circuit (Part 1 of 2). Cordoba & Mirada:

Fig. 15 Front End Lighting Wiring Circuit (Part 2 of 2). Cordoba & Mirada:
