Interior Lights Dimming Schematics



INTERIOR LIGHTS DIMMING SCHEMATICS

Dimming Controls and LED Dimming

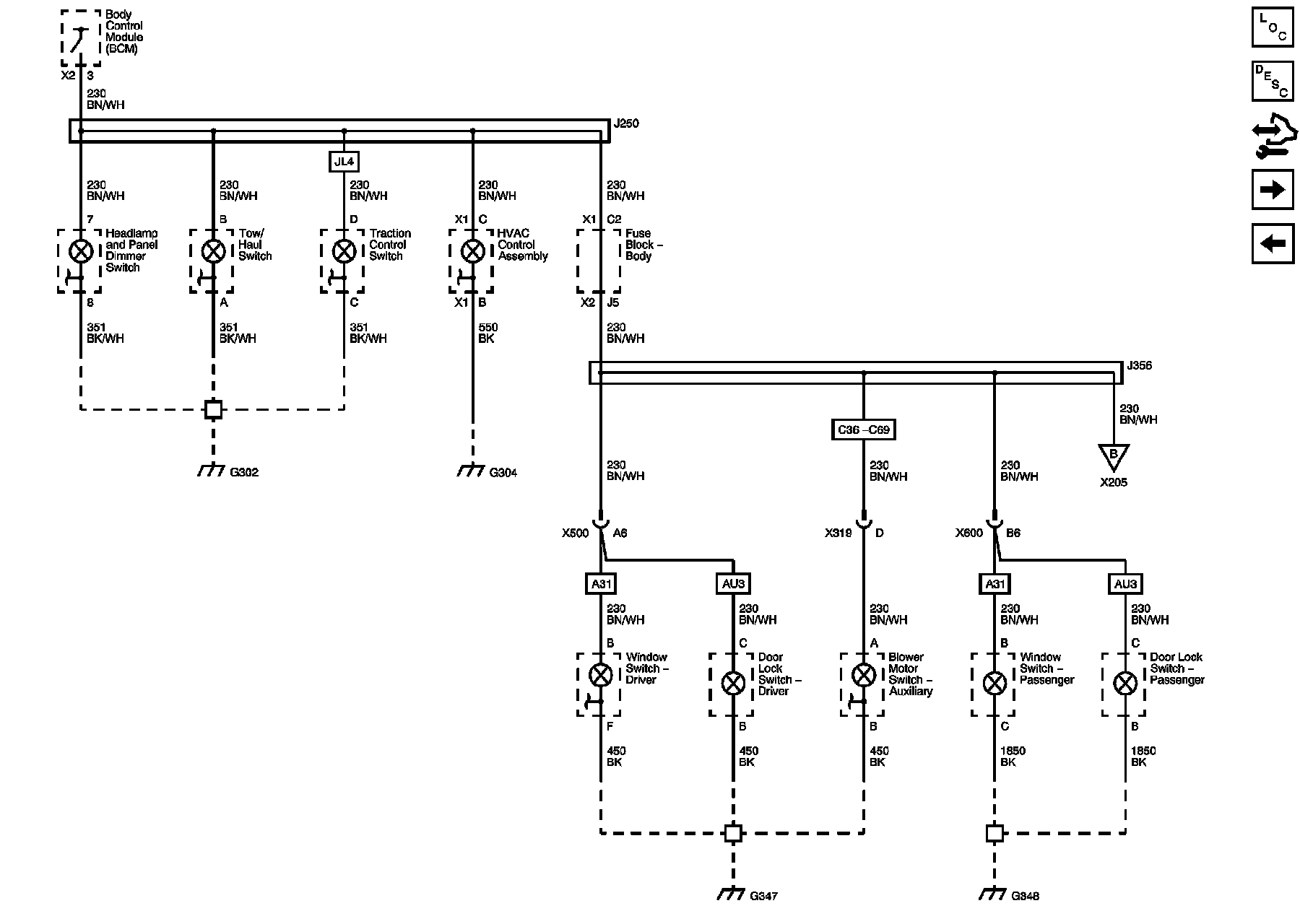

I/P Bulb Dimming
