Sit-N-Lift Remote Control Replacement

Sit-N-Lift Remote Control Replacement

Removal Procedure




1. Remove the right side upper trim panel from the seat base.

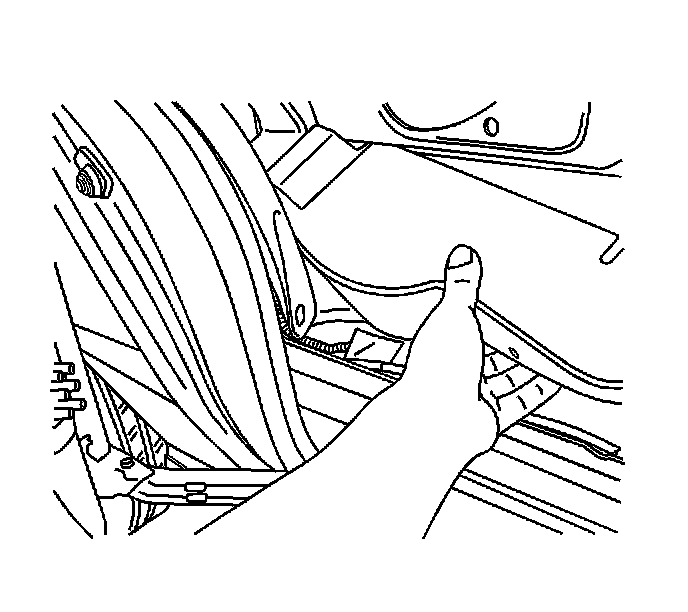

2. Disconnect the retainers holding the cable to the upper trim panel.
3. Remove the rear trim panel from the seat base.

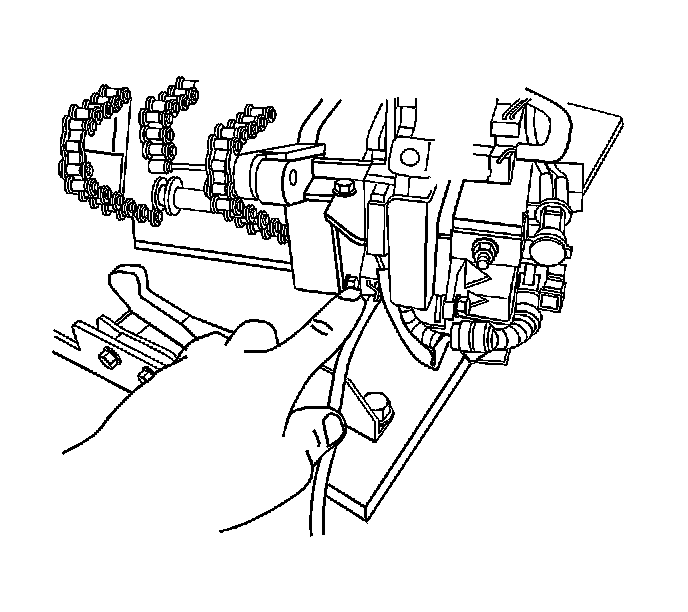

4. Disconnect the electrical connector from the seat base.




5. Remove the remote control and the chord from the vehicle.

Installation Procedure




1. Install the remote control and the chord to the seat base.




2. Connect the electrical connector to the seat base.




3. Install the rear trim panel to the seat base.
4. Connect the retainers holding the cable to the upper trim panel.
5. Install the right side upper trim panel to the seat base.
6. Test the seat for proper operation.
