Home >> Chevy Truck >> 2004 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> ABS Diagrams ( Power, Ground and Electronic Brake Control Module)

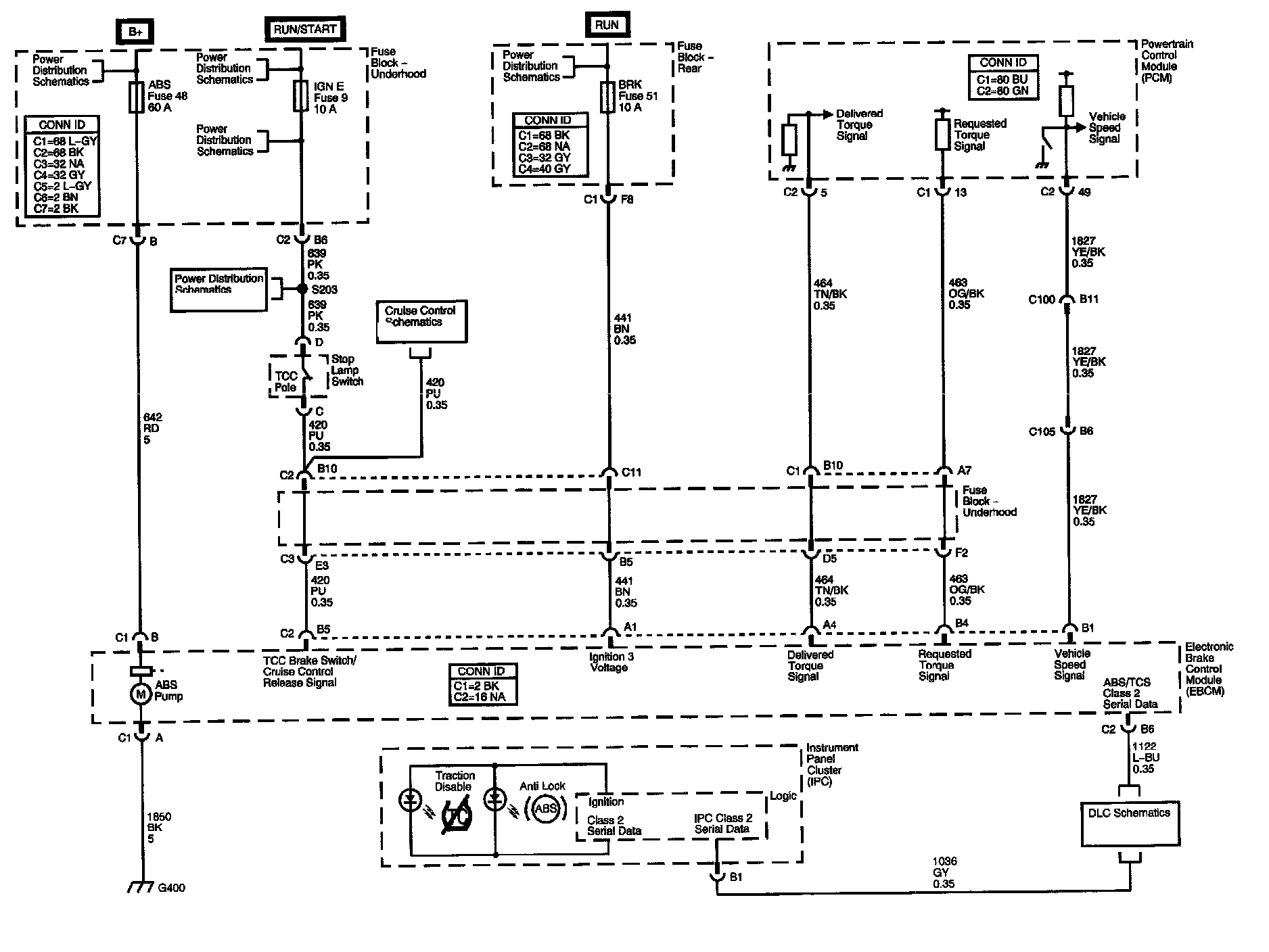

ABS Diagrams ( Power, Ground and Electronic Brake Control Module)
