Home >> Chevy Truck >> 2004 >> Express 2500 2WD V8-6.0L VIN U >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Connector Locations >> 4L60-E/4L65-E Automatic Transmission >> Automatic Transmission Inline 20-Way >> Engine Side

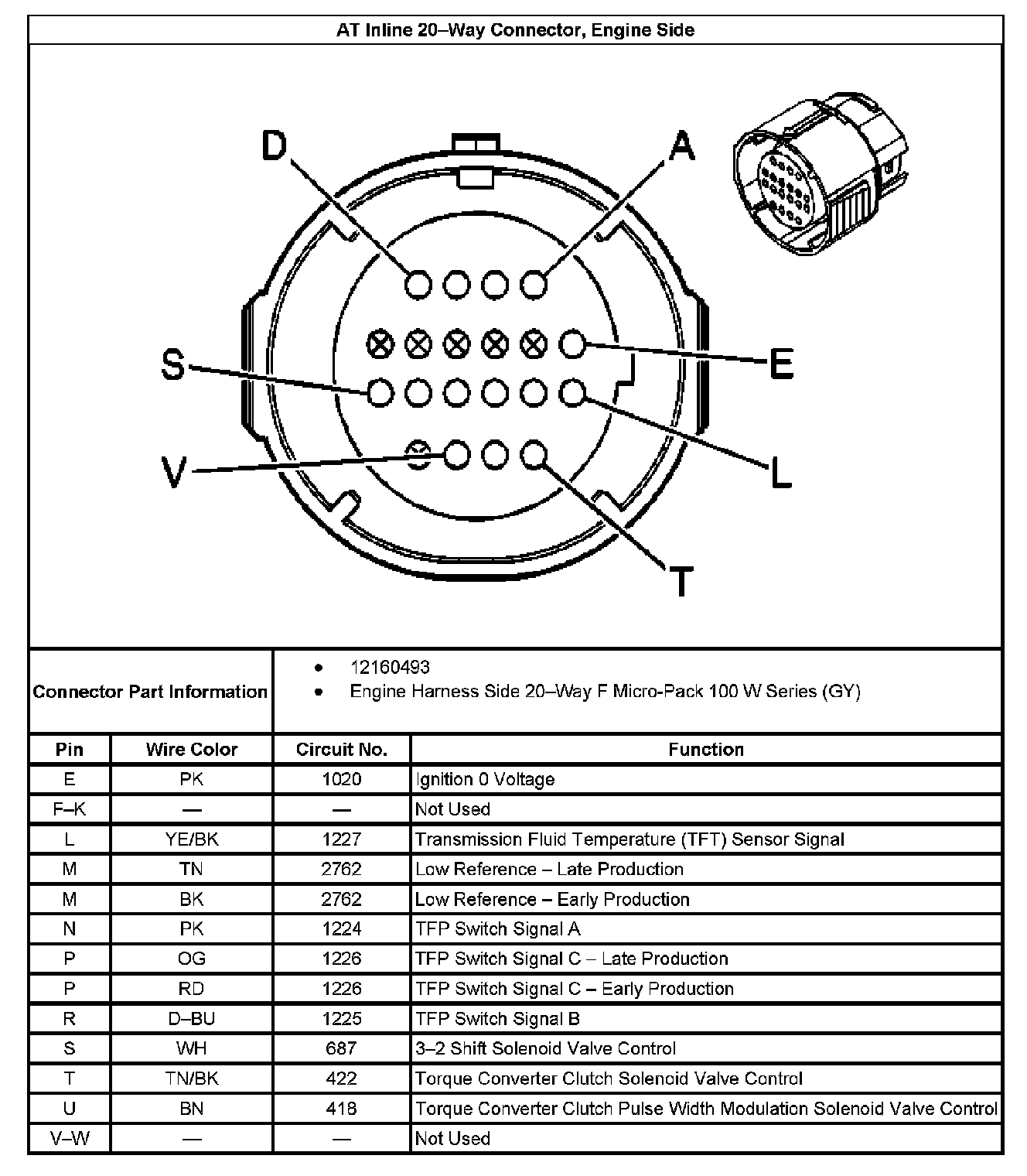

Engine Side

Part 1 Of 2:



Part 2 Of 2:
