Home >> Chevy Truck >> 2004 >> Blazer 2WD V6-4.3L VIN X >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Component Tests and General Diagnostics >> Charging System Test

Charging System Test

Steps 1-2:



Steps 3-5:

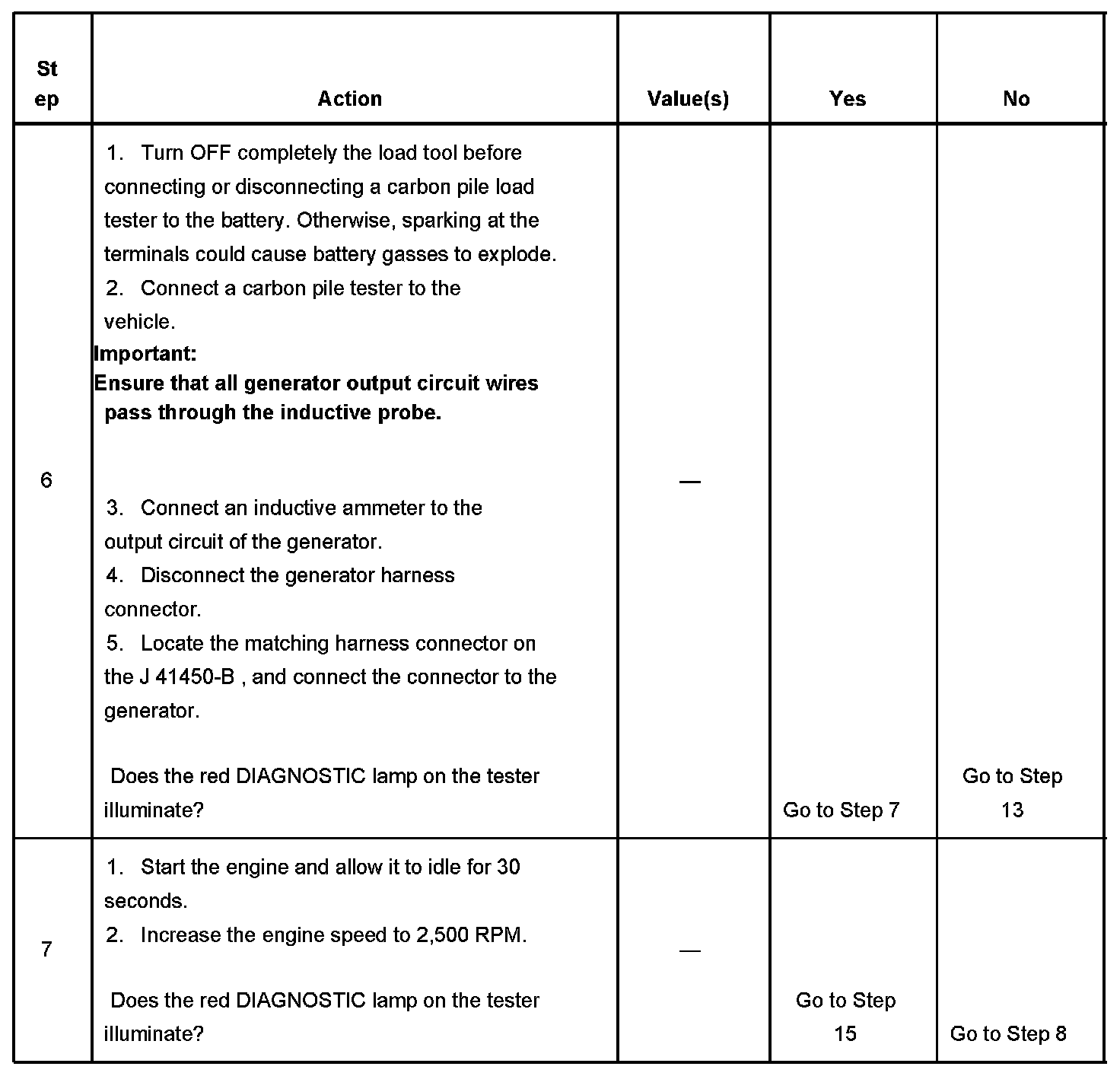

Steps 6-7:



Steps 8-10:



Steps 11-16:
