Retained Accessory Power (RAP) - On After Timeout - with Relay

Steps 1-2:

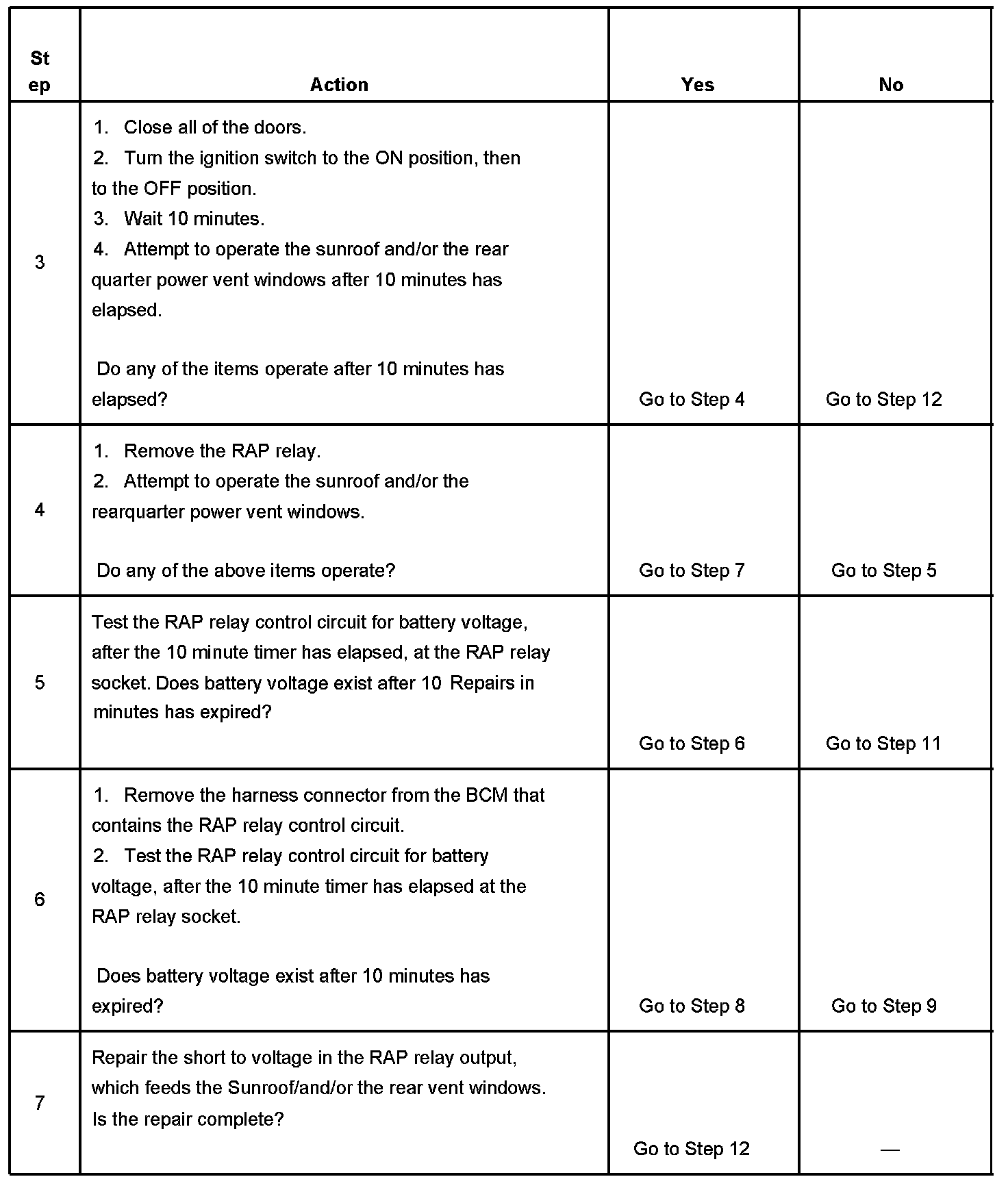

Steps 3-7:



Steps 8-12:
