Home
>>
Chevy Truck
>>
2003
>>
Silverado SS AWD V8-6.0L VIN N
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Connector Views
>>

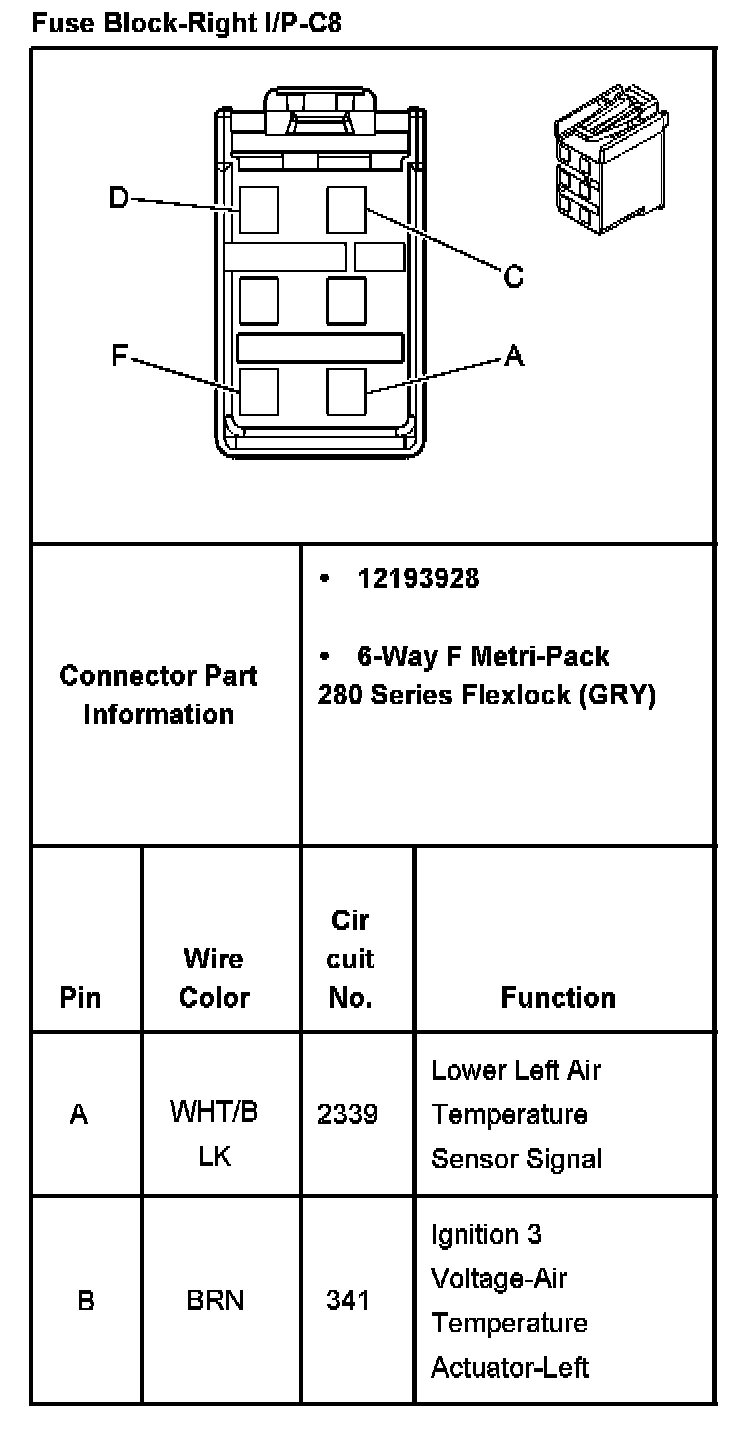

Fuse Block - Right I/P - C8
Fuse Block - Right I/P - C8
Fuse Block - Right I/P - C8 Part 1:
Fuse Block - Right I/P - C8 Part 2:
