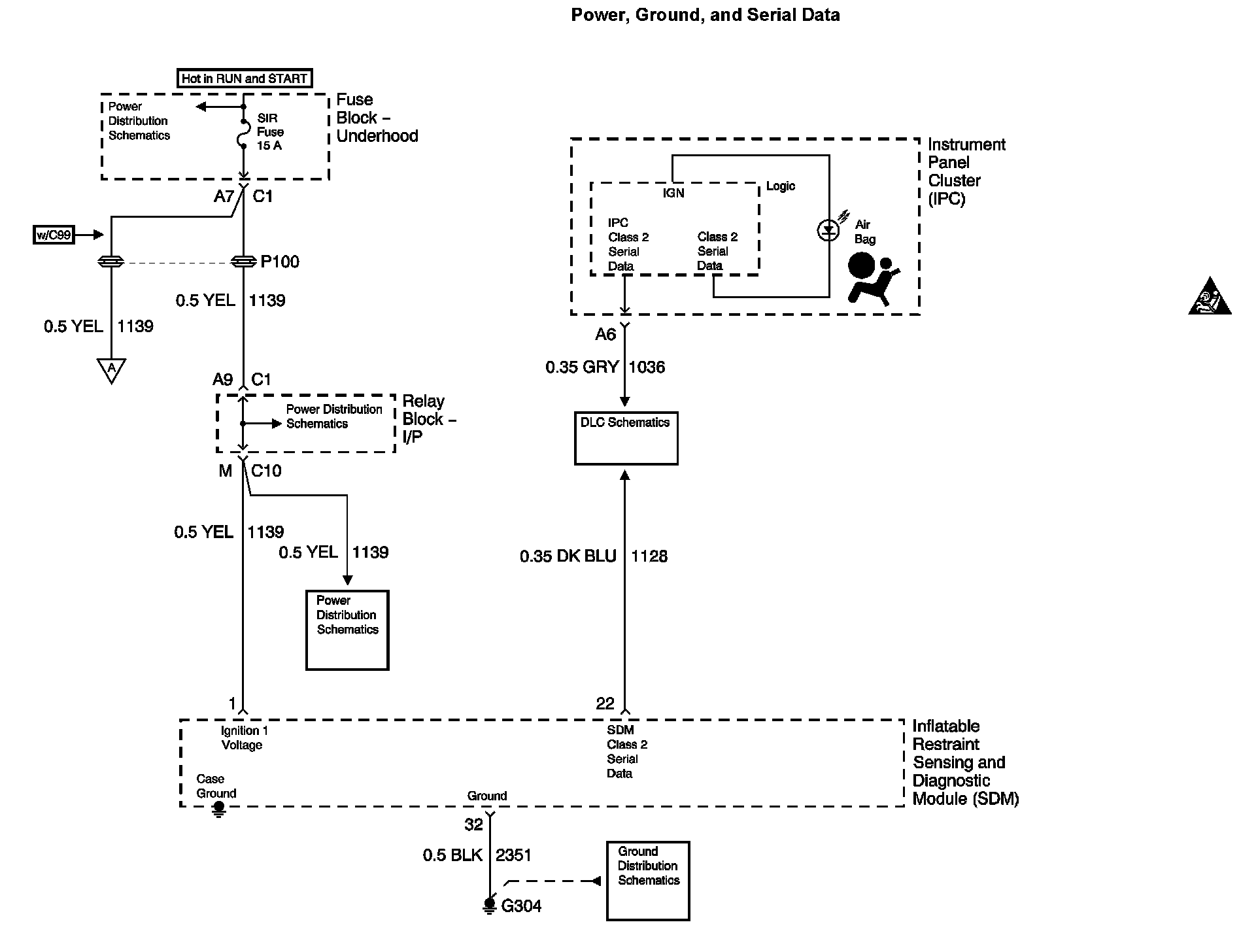

Diagram 1 - Power, Ground, and Serial Data

SIR Diagram 1:






Next Diagram Diagram 2 - Front End Sensors
