Control Valve Body Assembly

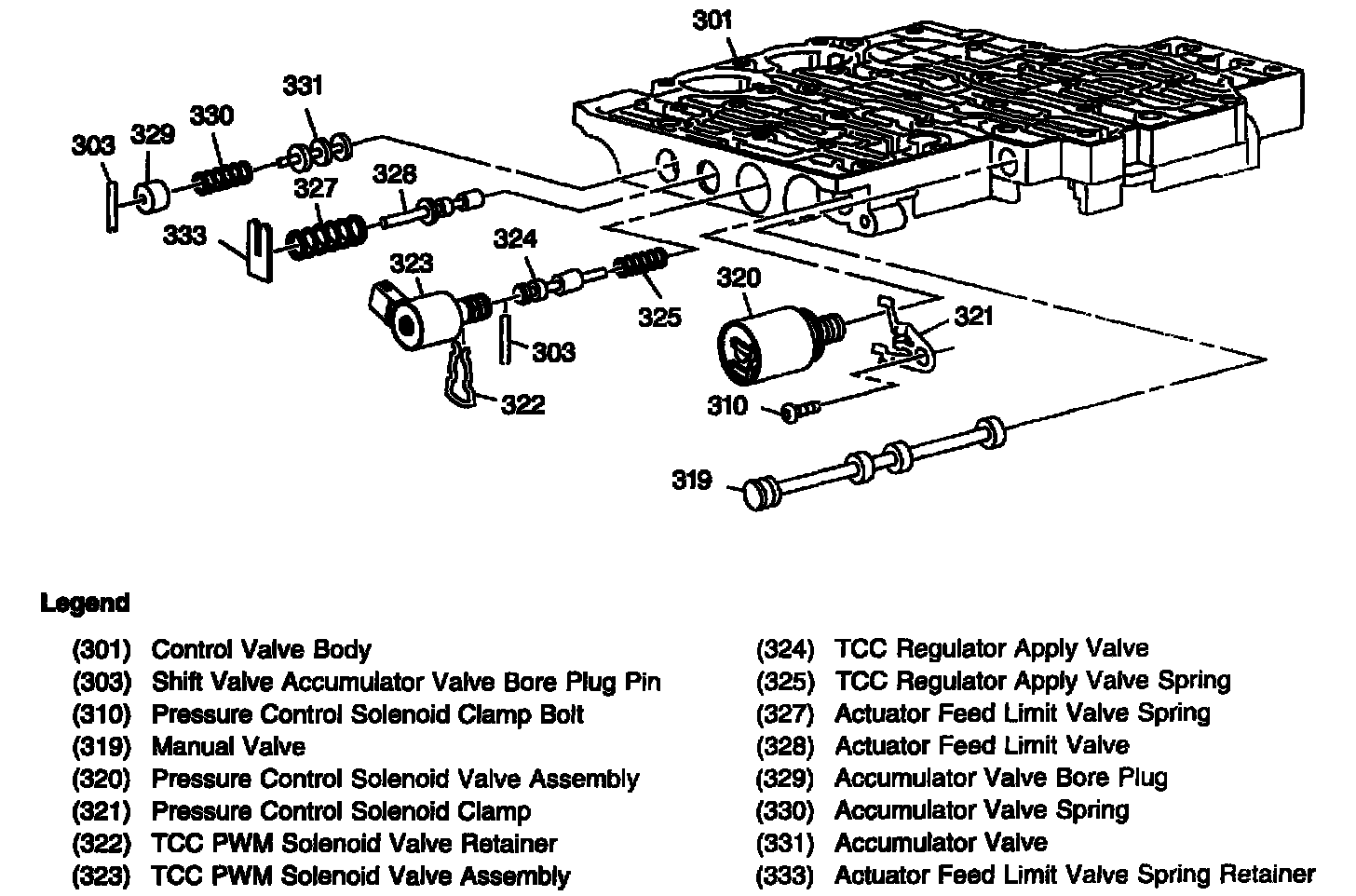

Control Valve Body Assembly Part 1 Of 2:

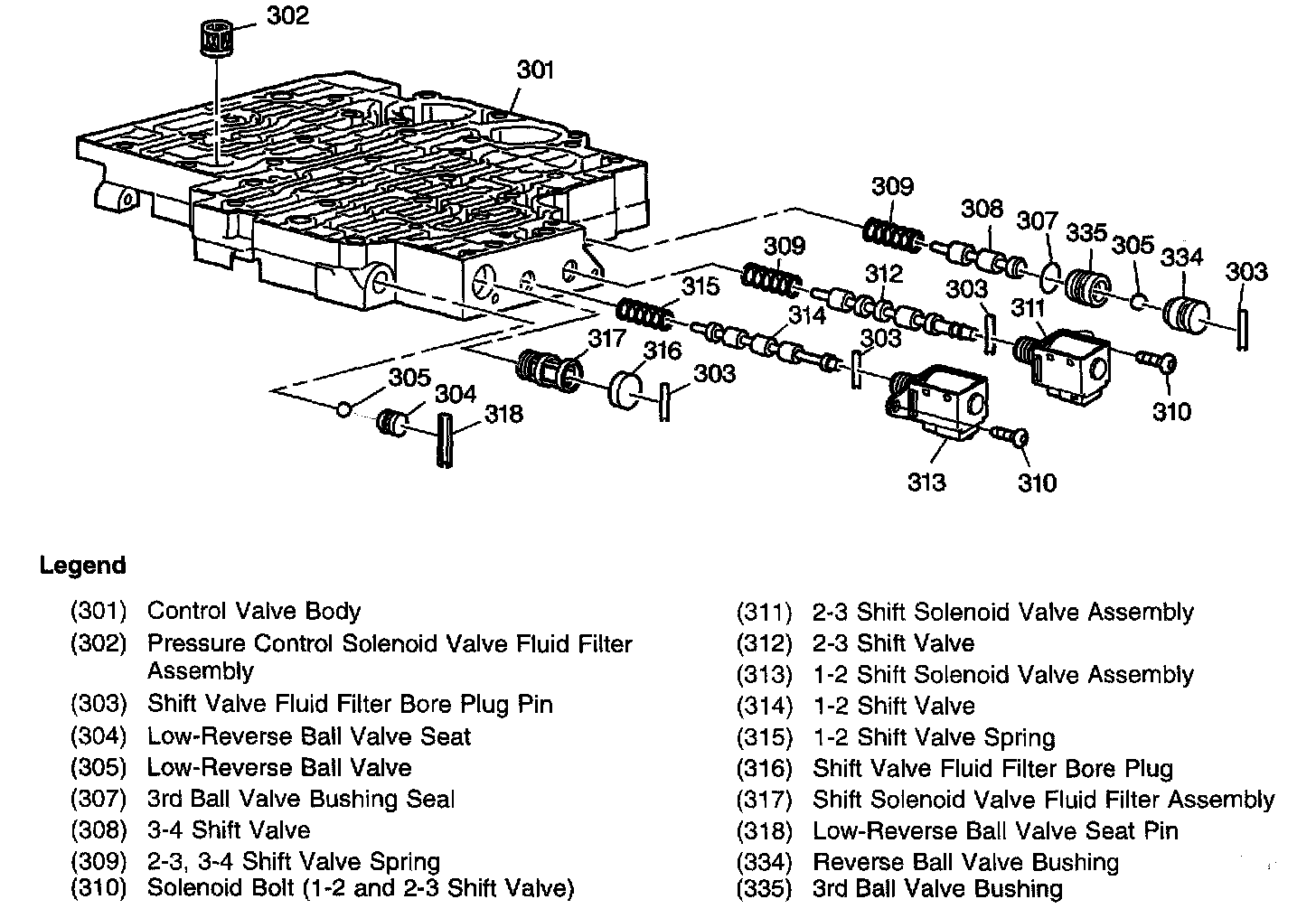

Control Valve Body Assembly Part 2 Of 2:
