NV 3500

Transmission Mount Replacement
Removal Procedure





1. Raise and support the vehicle.
2. Support the transmission with a transmission jack.
3. Remove the transmission mount to the transmission support retaining nut.





4. Raise the transmission to take the weight off of the mount.

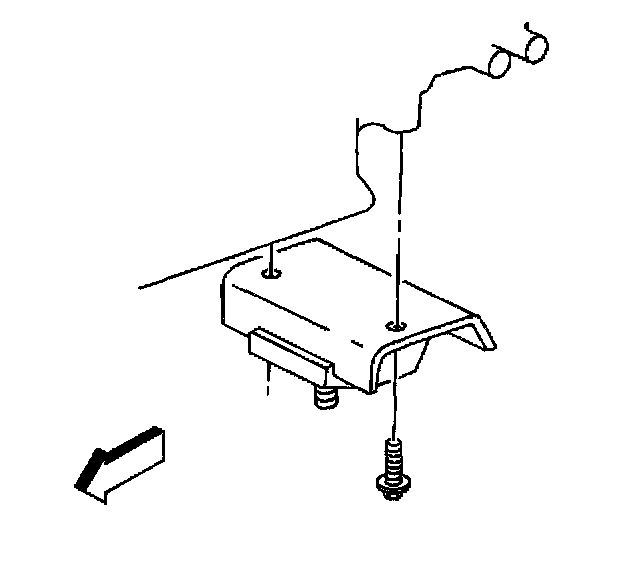

5. Remove the transmission mount to the transmission mounting bolts.
6. Raise the transmission just enough to remove the transmission mount.
7. Remove the transmission mount from the vehicle.

Installation Procedure





1. Install the transmission mount to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the transmission mount to the transmission mounting bolts.
^ For vehicles equipped with 2.2L, tighten the bolts to 45 Nm (33 ft. lbs.). For vehicles equipped with 4.3L, tighten the bolts to 50 Nm (37 ft. lbs.).





3. Lower the transmission.
4. Install the transmission mount to the transmission support retaining nut.
^ Tighten the nut to 57 Nm (42 ft. lbs.).
5. Remove the transmission jack.
6. Lower the vehicle.
