10. Shift Shaft and Shift Forks Cleaning and Inspection
Shift Shaft and Shift Forks Cleaning and InspectionShift Rail and Fork Clean and Inspect
1. Clean all the parts in a suitable cleaning solvent. Air dry the parts.
2. Inspect all parts for wear and for damage.
3. Inspect the shift shafts for the following:
^ Rounding of detent shoulders
^ Bent
^ Scored

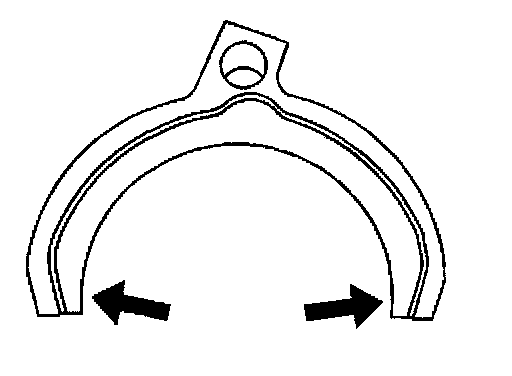

4. Inspect for bent shift forks.
5. Inspect the shift fork arm for wear.
