Home
>>
Chevy Truck
>>
2003
>>
S10/T10 P/U 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C200 - C229
>>
C201 - Steering Column Harness
C201 - Steering Column Harness

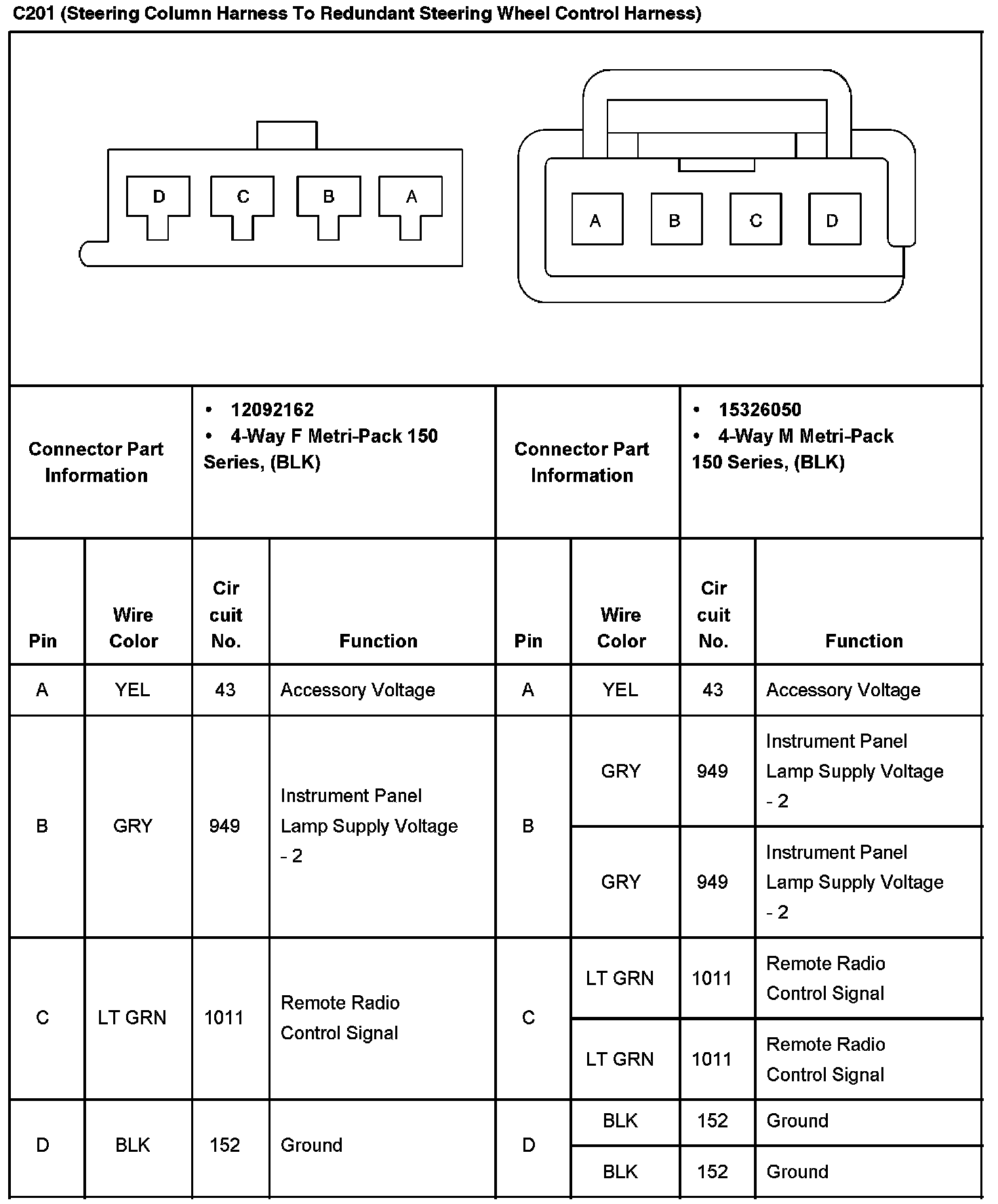

C201 (Steering Column Harness To Redundant Steering Wheel Control Harness):
