Bumper Replacement - End Gate (Pickup)

Bumper Replacement - End Gate (Pickup)

Removal Procedure

1. Open the endgate.

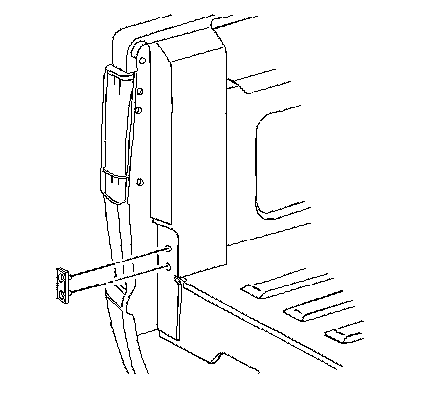

2. Perform the following steps in order to remove the pickup box endgate bumper from the vehicle:

1. Grip the endgate bumper.
2. Pull out the endgate bumper in order to release the retainers.

Installation Procedure




1. Insert a blunt object into the recessed areas of the bumper.
2. Press the blunt object forward in order to seat the retainers.
