77. Water Pump Installation

Water Pump Installation







1. Place the water pump gaskets and the water pump into position.

Notice: Refer to Fastener Notice in Service Precautions.
Fastener Notice

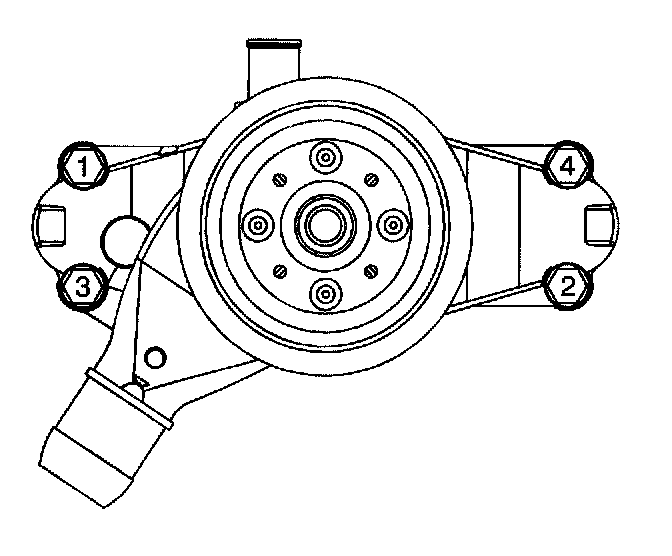

Example Of Sequence:

2. Install the water pump bolts.
- Tighten the water pump bolts to 25 Nm (18 lb ft) for the first pass.
- Tighten the water pump bolts to 50 Nm (37 lb ft) for the final pass.
