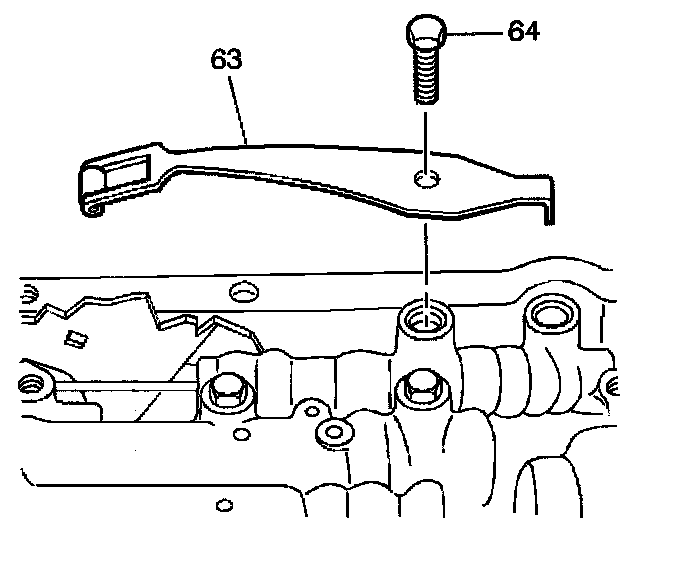

79. Manual Detent Spring Installation

1. Inspect the manual detent spring assembly (63) for cracks or damage.
2. Install the manual detent spring assembly (63).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the manual detent spring bolt (64).
^ Tighten the bolt to 24 Nm (18 ft. lbs.).
