Home
>>
Chevy Truck
>>
2003
>>
C 2500 Suburban 2WD V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
4L80-E/4L85-E Automatic Transmission
>>
Forward Clutch Assembly

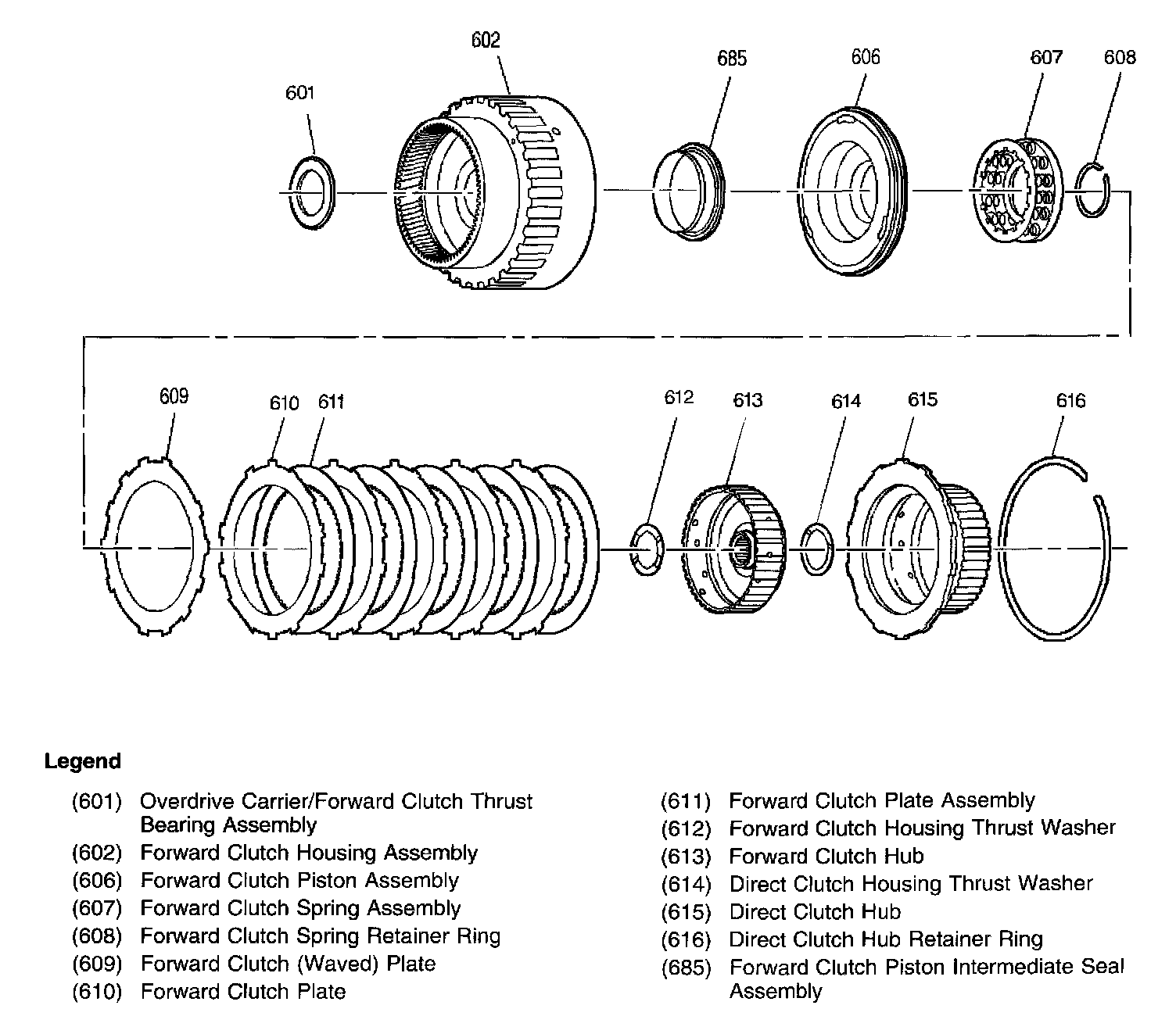

Forward Clutch Assembly
Forward Clutch Assembly:
