Power, Ground, Serial Data, and Side Impact Sensors

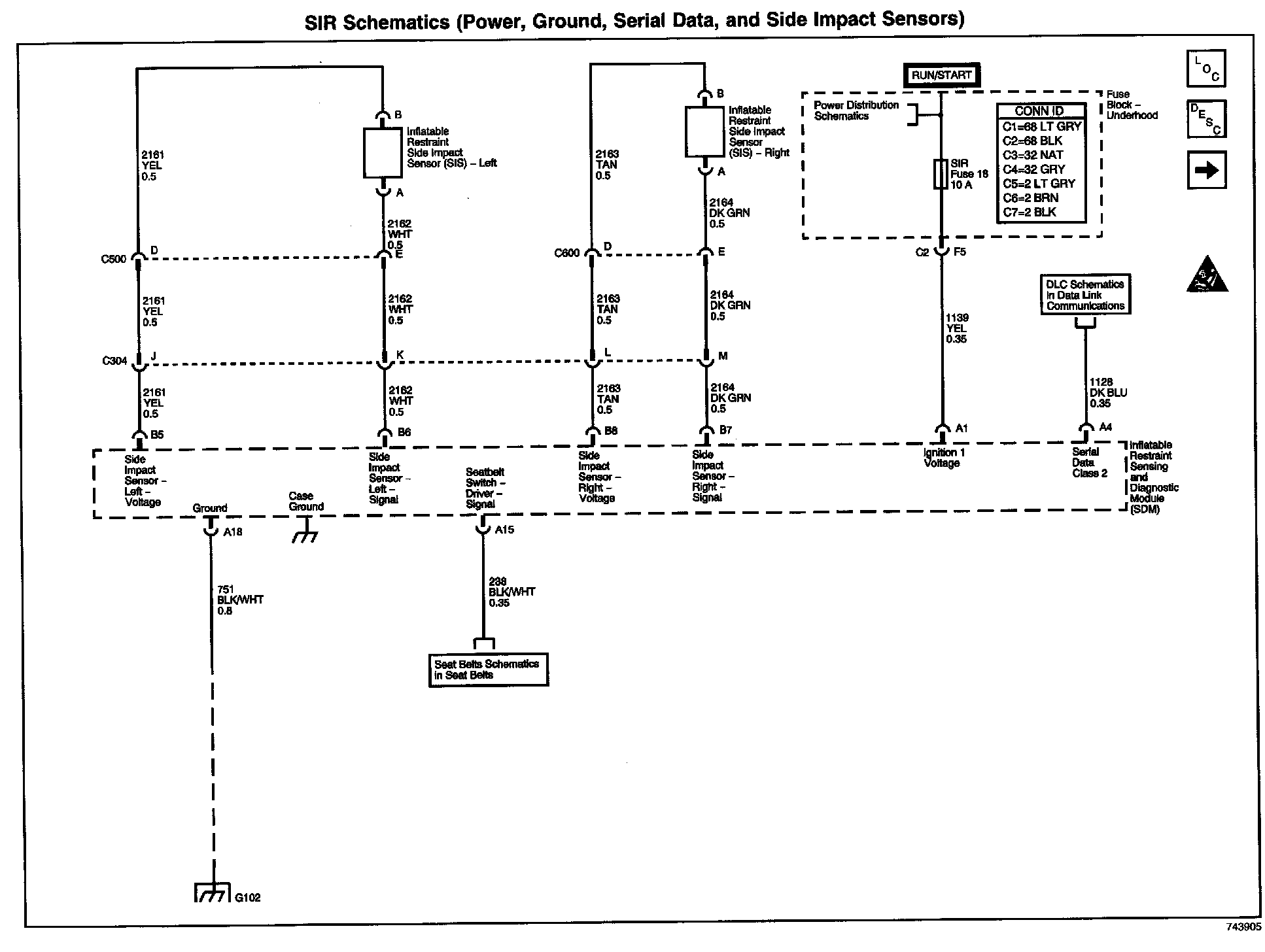

SIR Schematics: Power, Ground, Serial Data, And Side Impact Sensors:
