Parking Lamp Relay: Service and Repair
TOOLS REQUIREDJ 43244 Relay Puller Pliers
REMOVAL PROCEDURE
1. Position the left side second row seat in order to gain access to the bussed electrical center.
2. Remove the bussed electrical center protective covers.

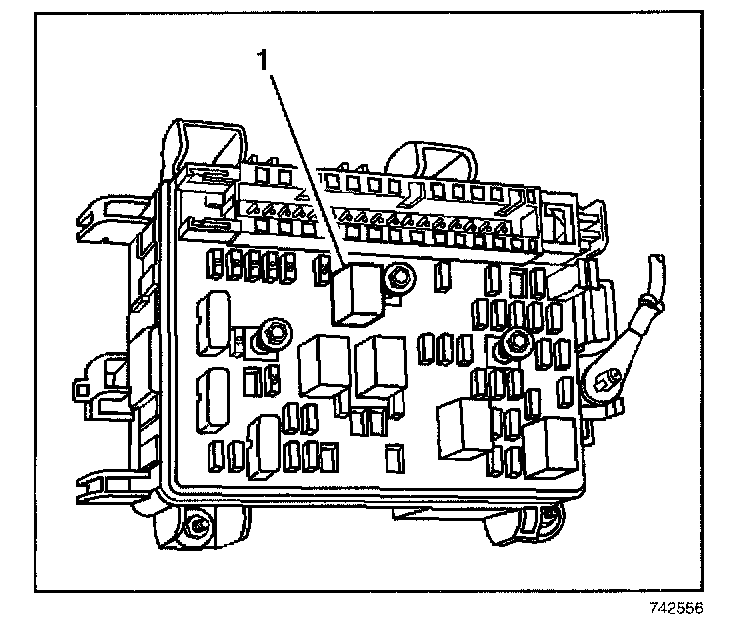

3. Use the J 43244 in order to remove the park lamp relay (1) from the bussed electrical center.
INSTALLATION PROCEDURE
1. Use the J 43244 in order to install the park lamp relay (1) to the bussed electrical center.
2. Install the protective covers to the bussed electrical center.
3. Reposition the left side second row seat.
