Fluid - M/T: Service and Repair

Fluid Replacement

^ Tools Required
- J 36511 Oil Fill/Drain Plug Hex Bit

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.

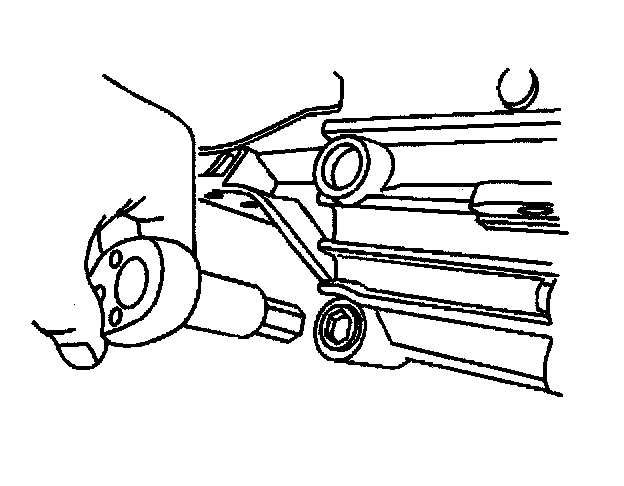

2. Using J 36511 remove the oil fill and drain plugs. Drain the oil in a suitable container.

Installation Procedure





1. Apply sealant to the oil drain plug threads. Use sealant GM P/N 12346004 or the equivalent.

Notice: Refer to Fastener Notice in Service Precautions.





2. Using J 36511 install the oil drain plug.
^ Tighten the oil drain plug to 30 Nm (22 ft. lbs.).





3. Fill the transmission to the level of the fill plug hole.





4. Apply sealant to the oil fill plug threads. Use sealant GM P/N 12346004 or the equivalent.





5. Using J 36511 install the oil fill plug.
^ Tighten the oil fill plug to 30 Nm (22 ft. lbs.).
6. Lower the vehicle. Refer to Vehicle Lifting.

Control Lever and/or Boot Replacement
Removal Procedure





1. Remove the shift lever from the shift tower. Do not remove the shift lever adjusting nut.
2. Remove the screws securing the boot to the panel.
3. Remove the boot from the shift tower.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the boot over the shift tower and secure to the panel with the screws.
^ Tighten the screws to 2 Nm (18 inch lbs.).
2. Install the shift lever to the shift tower. If required, center the shift lever with the adjusting nut.
^ Tighten the adjusting nut to 48 Nm (35 ft. lbs.).
