Home >> Chevy Truck >> 2002 >> S10/T10 Blazer 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Diagrams >> Schematics By Circuit >> S501 (Utility)

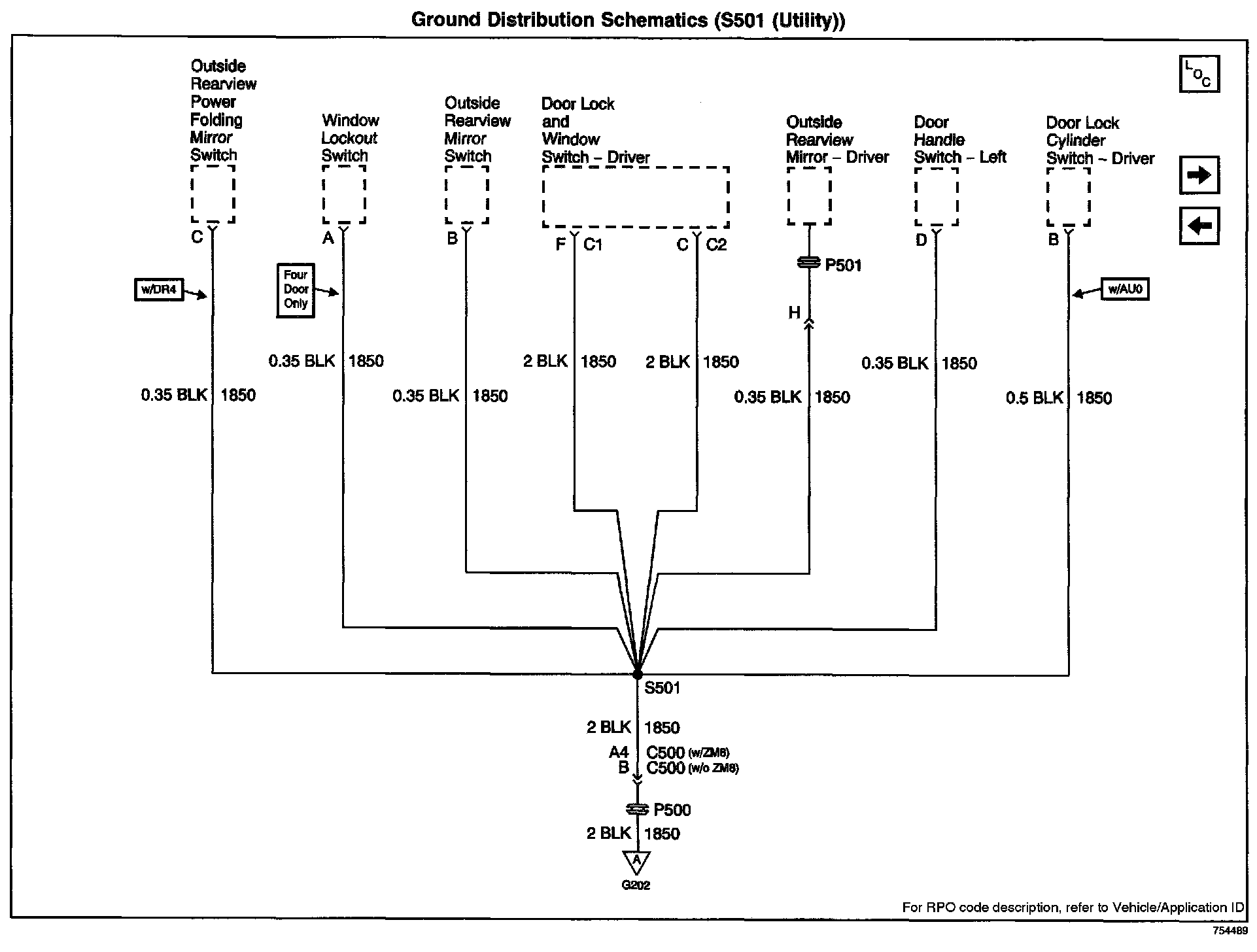

S501 (Utility)

S501 (Utility):
